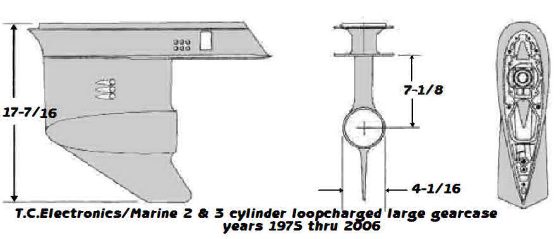

Physical characteristics drawing 2-3 cylinder loopcharged

Evinrude/Johnson outboard parts drawing
2 & 3 cylinder loopcharged large hub gearcase
Lower unit years 1975 to 2006

  • Physical characteristics 17 7/16 inches tall and rear view hub 4-1/16 inch wide and straight at the trailing end of the gear housing and the fin
  • Pointed at the trailing end of the cavitation plate that 7-1/8 inch up from center of propeller shaft
  • Six holes above the cavitation plate with internal water intake screens (three holes) and no speedo pilot years 1975 to 2006
  • Exploded view lower unit drawings
    Search by part number or description here

Click on drawing illustration below for exploded view tech drawing that will show all 60 internal parts and photos.

2-3 cylinder
2-3 cylinder

Click here for 2 and 3 Cylinder loopcharged power-head
Evinrude/Johnson lower gearcase exploded view parts.

Need help with repairs here is a marine manual on lower units.

Not sure what your outboards lower unit model is ?
Contact our tech service rep for help.
