Johnson / Evinrude outboard powerhead ignition system applications for point sets, tune-up-kit and condenser

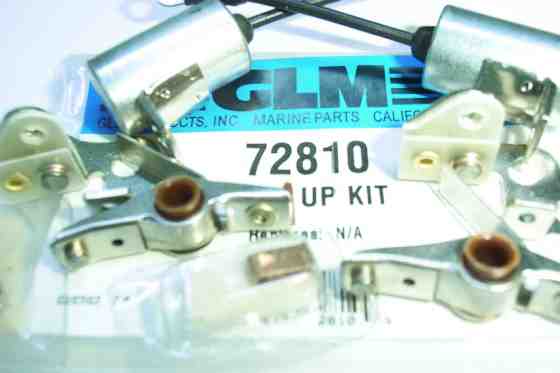

W 72810 johnson outboard tune up kit.jpg

Hp and Years

Point sets
Condenser
Tune-up-kit
1.5 hp or 2 hp years 1968 thru 1990
70070
70570
72800
3 hp years 1952 thru 1968
70070
70570
72810
4 hp years 1965 thru 1976
70070
70570
72810
4 hp years 1981 thru 1990
70070
70570
72810
4.5 hp year 1981
70200
70640
72830
5 hp years 1965 thru 1968
70070
70570
72810
5.5 hp years 1954 thru 1964
70070
70570
72810
6 hp years 1965 thru 1976
70070
70570
72810
7.5 hp years 1956 thru 1958
70070
70570
72810
9.5 hp years 1964 thru 1973
70070
70570
72810
9.5 hp years 1974 thru 1976
70200
70640
72830
9.9 hp years 1974 thru 1976
70080
70640
72830
10 hp years 1954 thru 1963
70070
70570
72810
15 hp year 1956
70200
70640
72830
15 hp years 1974 thru 1976
70070
70570
72810
18 hp years 1957 thru 1961
70070
70570
72810
18 hp years 1962 thru 1973
70070
70640
72820
20 hp years 1962 thru 1973
70070
70640
72820
25 hp year 1955
70070
70570
72810
25 hp years 1969 thru 1976
70070
70640
72820
28 hp years 1962 thru 1964
70070
70640
72820
30 hp year 1956
70070
70570
72810
33 hp years 1965 thru 1970
70070
70640
72820
35 hp years 1958 thru 1959
70070
70570
72810
35 hp year 1976
70070
70640
72820
40 hp years 1960 thru 1961
70200
70570
72810
40 hp years 1962 thru 1973
70070
70640
72820
40 hp years 1974 thru 1976
70070
70640
72820
40C hp years 1981 thru 1983
70200
70640
72830
45 hp years 1958 years 1959
70080
70590
72840
50 hp years 1958 thru 1959
70080
70590
72840
60 hp years 1964 thru 1967
70080
70590
72840
75 hp years 1960 thru 1965
70080
70590
72840
80 hp years 1966 thru 1967
70080
70590
72840
90 hp years 1964 thru 1975
70080
70590
72840
100 hp year 1966
70080
70590
72840
