25, 30 and 35 hp. Johnson outboard water pump

GLM Marine aftermarket outboard water pump, screws, pump housing, impeller and key

  • 25, 30 and 35 hp years 1996, 1997, 1998, 1999, 2000 and 2001
  • 3 Cylinder powerhead with loopcharged engines OEM 437907
  • White plastic wedge type key P/N 89593
  • Johnson exploded view drawings

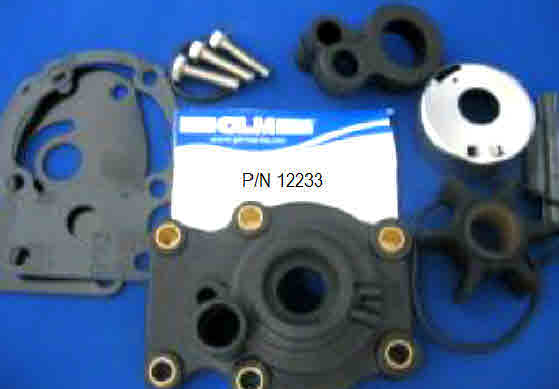

12233 outboard kit 437907

12233 outboard kit 437907


25, 30 and 35 hp Evinrude-Johnson water pump parts
22351 Stainless steel screw OEM-328725
22351 Stainless steel screw OEM-328725

P/N 22351 screw OEM 328725 $4.95

86487 Grommet for 12472 housing
86487 Grommet for 12472 housing

P/N 86487 grommet OEM 340811 $7.95

21427 Brass bushing 328754
21427 Brass bushing 328754

P/N 21427 bushing OEM 328754 $4.95

12472 Water pump base
12472 Water pump base

P/N 12472 pump housing OEM 339720 $27.95

12812 cup 328751
12812 cup 328751

P/N 12812 Pump cup OEM 328751 $13.95

34520 Gasket 325537
34520 Gasket 325537

P/N 34520 Gasket OEM 325537 $4.95

81220 O-ring 554545
81220 O-ring 554545

89750 impeller 395289
89750 impeller 395289

P/N 89750 Water pump impeller Water pump impeller OEM 395289 $12.95

89593
89593

P/N 89593 Impeller key OEM 89593 $4.95

86230 Seal 328753
86230 Seal 328753

P/N 86230 Seal OEM 328753 $4.95

12630 Wear plate  328755
12630 Wear plate 328755

P/N 12630 Wear plate OEM 328755 $9.95

34520
34520

P/N 34520 Gasket OEM 325537 $4.95



P/N 86216 seal OEM 322370

45230
45230

P/N 45230 O-ring OEM 301877 $4.95
