Johnson powerhead gasket set V-6 Cross 90 degree

GLM aftermarket P/N 39090 complete gasket set

  • Johnson / Evinrude outboard powerhead gasket set OEM # 391988
  • Aftermarket GLM P/N 39090
  • Use with V-6 Cross 90 powerheads
  • 150 hp for years 1978 - 1991
  • 155 hp for years 1986 - 1991
  • 175 hp for years 1977 - 1985
  • 185 hp for years 1984 - 1985
  • 200 hp for years 1976 - 1983
  • 235 hp for years 1978 - 1978
  • Outboard pistons also available

Exploded view lower unit drawings

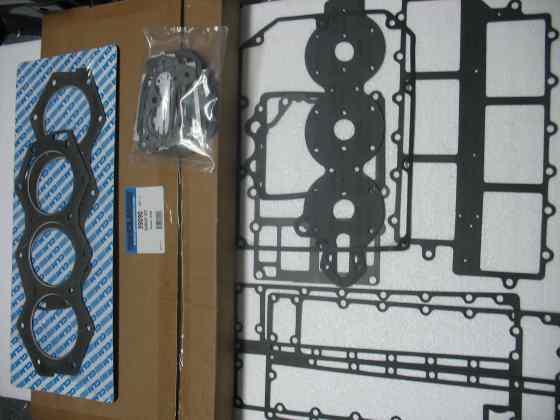

 39090 Gasket set

39090 Gasket set

P/N 39090 Powerhead gasket set $121.95

Customers who bought P/N 39090 also purchased:

24030
24030

Piston for V4, V6 cross flow 90 degree engines with original bore size of 3.500 inches

150 hp. V61978-1991
175 hp. V6 1977-1985
185 hp. V6 1984-1985
200 hp. V6 1976-1983
235 hp. V6 1978-1979

P/N 24010 Piston kit STD $91.95

393271
394930
327861
317831

12102 Evinrude Johnson
12102 Evinrude Johnson

P/N 12102 OEM 5001594 Years 1979 to 2006 Johnson/Evinrude V4, V6 and V8 outboard, for 20 inch shaft models. $62.95
