Mercury outboard water pump 4 to 9.8 hp. P/N 12122

GLM products aftermarket water pump 1 Cylinder with .456 inch impeller I.D. for years 1982 to 1986

  • Mercury /Mariner water pump with impeller
  • 4 to 9.8 hp.
  • 1 Cylinder with .456 inch
  • OEM 46-70941A3

Exploded view drawings Click here
Search by part number or description here

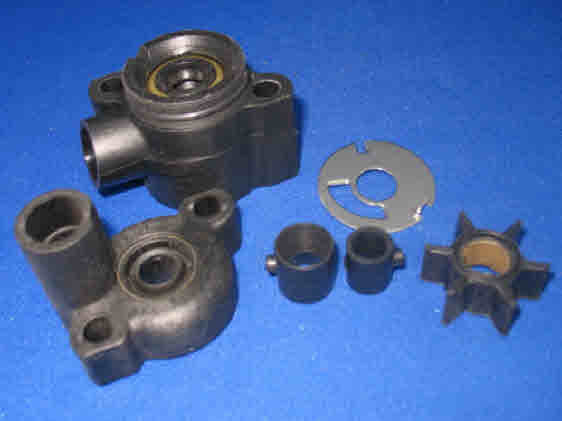

12122 Mercury outboard water pump kit

12122 Mercury outboard water pump kit

P/N 12122 Water pump with impeller $55.15
OEM 46-70941A3

Parts included listed here

P/N 85153 GROMMET OEM: 26-36558

P/N 85270 OIL SEAL OEM: 26-30913

P/N 12428 PUMP HOUSING OEM: 93224A1

P/N 12540 WEAR PLATE OEM: 46895

P/N 89810 IMPELLER OEM: 47-89981

P/N 12817 PUMP CUP OEM: 70977

P/N 12433 PUMP BASE OEM: 46-70941T01

P/N 81230 0-RING OEM: 25-29439

P/N 86450 OIL SEAL OEM: 26-30900T

P/N 12837 GROMMET OEM: 26-33613

P/N 12122

1 Cylinder
.456 inch impeller I.D.
years 1982 to 1986

4 hp.
US. 5595532 and up
AUS. 8068065 and up
BEL. 9258281 and up
CAN. 7143688 and up

4.5 hp. (45) 1 Cylinder .456 impeller I.D. 1980 to 1985
US. 5595532 and up
AUS. 8068065 and up
BEL. 9258281 and up
CAN. 7147238 and up

7.5 hp. with .456 inch impeller I.D. years 1979 to 1986
US. 5206550 and up
AUS. 8057545 and up
CAN. 7125388 and up

9.8 hp. (110) years 1974 to 1978
US 4126460-5206549
AUS 8028440-8057554
BEL. 9078139-9217755
CAN. 7049108-7125387

9.8 hp. with .456 inch impeller I.D. years 1979 to 1985
US. 5206550 and up
AUS. 8057545 and up
BEL. 9217756 and up
CAN. 7125388 and up
