Mercury water pump 2 stroke 30 to 70 hp. P/N 12100

GLM products aftermarket water pump for
30 Jet, 35, 40, 45, 50, 60 and 70 hp.

  • Mercury /Mariner water pump with impeller
  • OEM 46-77177A3
  • 2 stroke 30 to 70 hp.
  • (Use P/N 12030 pump base not included)
  • Fits (Years 1970-1986)
  • 30 Jet, 35, 40, 45, 50, 60, 70 hp,

Exploded view drawings Click here
Search by part number or description here

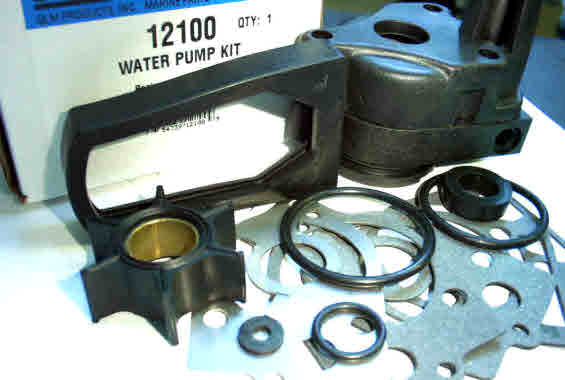

12100 Water pump kit

12100 Water pump kit

P/N 12100 Water pump with impeller $68.29
OEM 46-77177A3

Parts included listed here

P/N 85360 GROMMET OEM 26-38452
P/N 32710 GASKET OEM 12-38453
P/N 21320 SLINGER OEM 25-20273
P/N 12420 PUMP HOUSING OEM: 46-77822P
P/N 12860 PUMP CUP OEM 48753
P/N 89830 IMPELLER OEM 47-89983
P/N 31070 GASKET OEM 27-19551
P/N 12520 WEAR PLATE OEM 32768
P/N 31060 GASKET OEM 27-19553
P/N 12020 PUMP BASE OEM 46-73640A1
P/N 82230 O RING OEM 25-26855
P/N 12030 PUMP BASE OEM 46-77177A1
P/N 82240 O RING OEM 25-26722
P/N 85080 OIL SEAL OEM 26-90562
P/N 85580 OIL SEAL OEM 26-79831
P/N 85630 SEAL OEM 37721

12100

30 hp.
Jet
US OC159200 - OG589999

35 hp. 2 cylinder
US. 6445653 and up
BEL. 9384476 and up
CAN. 7209608 and up

40 hp. 2 cylinder 1983
US. 4860103 and up
AUS. 8052125 & up
BEL. 9184451 & up
CAN. 7112423 & up

40 hp. 4 cylinder
USA. OC159200 and up
BEL. 9570790 and up

45 hp. 4 cylinder
US. 5531630 and up
AUS. 8063985 and up
BEL. 924006 and up
CAN. 7143688 and up

50 hp. 4 cylinder
US. 5531630 and up
AUS. 8063985 and up
BEL. 9248006 and up
CAN. 7143688 and up

50 hp. 3 cylinder
US. 6428681 - OD00749
BEL. 9385911- 9683054
CAN. 7208333 and up

60 hp. 3 cylinder
US. 6428681 - OD000749
BEL. 9385911-9683054
CAN. 7208333 and up

70 hp. 3 cylinder
US. 4977157-6428630
AUS. 8050200 and up
BEL. 9196961- 9385910
CAN. 7110998-7208332
