Mercruiser Alpha One bell housing parts

T.C. Electronics/Marine (416) 751-7326 Home Page

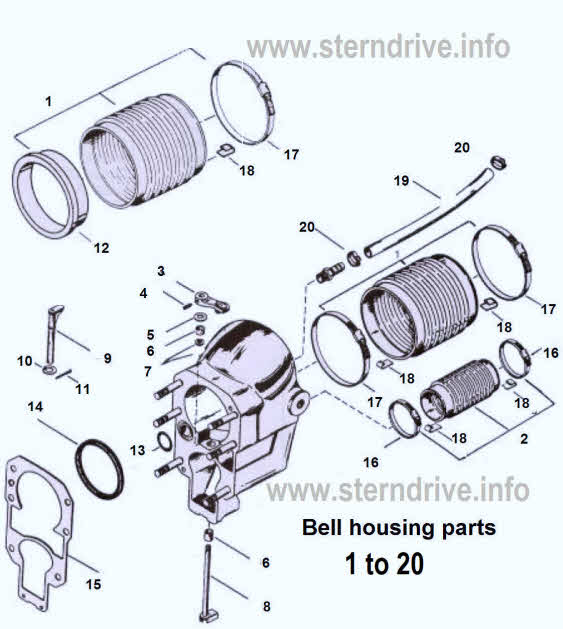

Alpha 1 bell housing parts drawing

Bell housing drawing and parts

Mercruiser parts drawing bell housing 1 to 20

bell housing

21950 Transom Kit
21950 Transom Kit


P/N 21950 Mercruiser / Alpha one transom service and repair kit with accordion type exhaust bellows $149.29


1A
P/N 89040 U-joint bellows GLM aftermarket Mercruiser parts for MC-1 years 1967 to 1972 OEM 36223A2 with stainless steel clamps.

Use with older engine serial # 2062141 to 3443920 and model number 888 series outdrive bell housings serial # 106717 to # 3472477 $56.29

89050 U Joint
89050 U Joint
1B

89100 Mercruiser Exhaust Bellow
89100 Mercruiser Exhaust Bellow
2
P/N 89100 Exhaust bellow kit OEM 18654A1 $25.29

21140 shift arm
21140 shift arm
3
P/N 21140 Shift arm OEM 45518A3 $21.29

21750 set screw

21750 set screw

4
P/N 21750 Set screw OEM 10-45590 $4.29

30040 gasket
30040 gasket
5
P/N 30040 Gasket (3 units) OEM 12-39116 $4.29

87561 bushing kit
87561 bushing kit
6
P/N 87561 Bushing kit for R / MR /Alpha One Generation 2 serial # F094774 and bellow OEM 23-805041A2 $29.29

85581 oil seal
85581 oil seal
7
P/N 85581 Oil seal OEM 26-816464-1 $7.29

21420 Upper

21420 Upper

8
P/N 21420 Upper shift shaft OEM 45589A3 $57.29

21421 intermediate shift shaft
21421 intermediate shift shaft
9

P/N 21421 Intermediate shift shaft OEM 62104-1 $39.29

21422 washer

21422 washer

10
P/N 21422 Washer OEM 12-32666 $4.29

22100 cotter pins
22100 cotter pins
11

P/N 22100 Cotter pin (10 units) #18-32665 $4.29

89181 Alpha one generation II sleeve
89181 Alpha one generation II sleeve
12A

P/N 89181 Sleeve Alpha 1 Generation 2 #816607 $15.29

89141 bravo sleeve
89141 bravo sleeve
12B

P/N 89141 Sleeve for all Bravo #86814 $4.29

82200 o rings
82200 o rings

13

P/N 82200
O-Ring (5 units) #25-33504 $4.29

31160 Outdrive gasket
31160 Outdrive gasket

14

P/N 31160
Gasket (5 units) #27-35982 $9.29

39622 MR Alpha one and generation II
39622 MR Alpha one and generation II

15

P/N 39622
Outdrive gasket kits for Alpha Gen 2 #27-94996A2 $6.29

39590 Bell housing gasket kit
39590 Bell housing gasket kit

15B

P/N 39590
Bell housing for Mercruiser #27-64818A4 $4.29

01070 hose clamp
01070 hose clamp

16

P/N 01070
Exhaust clamp #54-815504348 $4.29

01100 clamp
01100 clamp

17

P/N 01100
U-joint bellow clamp #54-815504372 $4.29

89440 grounding clips
89440 grounding clips

18

P/N 89440
Grounding clip #54-86049 $4.29

47110 Water hose.750
47110 Water hose.750

19A

P/N 47110
tube hose 3/4" ID use with R/MR /Alpha/Generation 2 #32-41725-33 $9.29

47120 Water hose .625
47120 Water hose .625

19B

P/N 47120
tube hose 5/8" ID use with 120 to 260 / R / MR #32-32461

01073 hose clamp
01073 hose clamp

20

P/N 01073
Water clamp 54-81554412 $4.29
