Mercruiser Alpha One bell housing parts

T.C. Electronics/Marine (416) 751-7326 Home Page

Mercruiser exhaust bellows *Bell housing

Outdrive bellows years 1963 and up bell housing

  • Exhaust bellow is typically used on most models and clamps on both ends (approximate I.D. 2-1/2")
  • Exhaust tube style is sometimes used on higher output big block motors (*note - tube style is significantly louder)
  • Not compatible with TR or TRS models
  • Use of marine adhesive is recommend on the exhaust but not required as it is in the drive shaft / u-joint bellows

89100 Exhaust 18654A1

89100 Exhaust 18654A1

P/N 89100 Bellows exhaust kit complete with clamps OEM 18654A1 $25.29

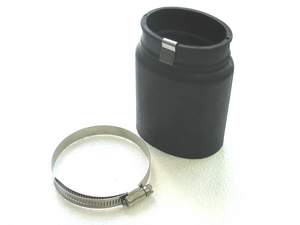

89150 Tube 78458A1

89150 Tube 78458A1

P/N 89150 Exhaust bellows tube with clamp Mercruiser Alpha One outdrive tube OEM 78458A1 $40.29

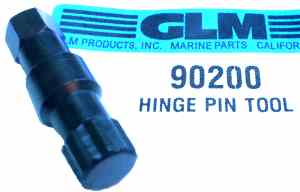

90200 tool hinge pin

90200 tool hinge pin

P/N 90200 Bell housing hinge pin removal tool required for u-joint or exhaust bellow removal

OEM 91-78310 $17.29

Need more help click here: outdrive repair tools
