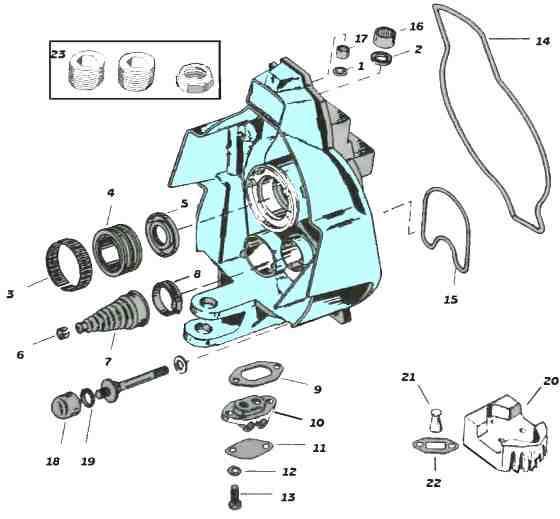

Mercruiser Alpha 1 exploded view gimbal housing drawing

GLM Marine aftermarket parts for MR / Alpha one outdrive

  • GLM Alpha 1 Mercruiser gimbal bearing housing parts can be used for the following outdrives: MC-1 / R / MR / Alpha One / Generation 2 (II)
  • Gimbal housing parts photos of each component and exploded view tech drawing
  • See our bellow repair video and other tech videos for step by step instructions

Mercruiser gimbal housing service tools click here

gimbal housing parts drawing
gimbal housing parts drawing

85420 oil seal
85420 oil seal

Item 1
P/N 85420
Oil seal OEM 26-54925 $10.29

85440 oil seal
85440 oil seal

Item 2
P/N 85440
Oil seal OEM 26-32911 $7.29


Item 3
Tolerance ring included with gimbal bearing listed below
21900 Gimbal bearing
21900 Gimbal bearing

Item 4
P/N 21900
Gimbal bearing with tolerance ring OEM 30-60794A4 $48.29

<

85910 Seal
85910 Seal

Item 5
P/N 85910
Gimbal bearing rear oil seal OEM 26-88416 $15.29

21790 clamp
21790 clamp

Item 6
P/N 21790
Shift cable bellow clamp OEM 54-38863 $4.29

89080 bellows
89080 bellows

Item 7
P/N 89080
shift cable bellow OEM 74639A2 $13.29

21791 hose clamp
21791 hose clamp

Item 8
P/N 21791
Shift cable bellow clamp OEM 54-31766 $5.29

32500 gaskets
32500 gaskets

Item 9
P/N 32500
Gasket OEM 27-98823-1 $4.29

21970 trim connector kit
21970 trim connector kit

Item 10
P/N 21970
trim cylinder line connector with gaskets OEM 98825A4 $54.29

32160 gasket
32160 gasket

Item 11
P/N 32160
gasket OEM 27-99506-1 $4.29

05009 lock washer 5 units
05009 lock washer 5 units

Item 12
P/N 05009
Lock washer, 5 units. OEM 13-78968 $5.29

22440 bolt
22440 bolt

Item 13
P/N 22440
screws OEM 10-28636 $4.29

86712 transom seal
86712 transom seal

Item 14A
P/N 86712
Transom seal Mercruiser 1 / MR / Alpha one OEM 65533A1 $6.29

86711 transom seal
86711 transom seal

Item 14B
P/N 86711
Transom seal Alpha One Generation II all Bravo & Blackhawks OEM 43713 $6.29



Item 15
P/N 86216
Seal transom OEM 41802 $9.29

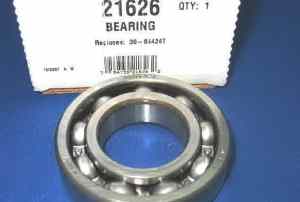

21626 gimbal housing ball bearing
21626 gimbal housing ball bearing

Item 16
P/N 21626
gimbal housing lower bearing OEM 31-32536 $43.29

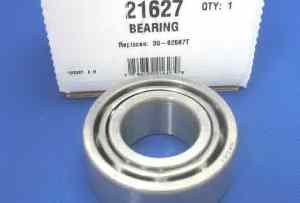

221627 ball bearing
221627 ball bearing

Item 17
P/N 21627 upper bearing OEM 31-21145 $47.29

12700 anode
12700 anode

Item 18
P/N 12700
Thread on bolt anode OEM 55989Q9 $10.29

GT 30355 rubber gasket
30355 rubber gasket

Item 19
P/N 30355
Gasket for bolt & anode OEM 12-56085 $4.29

12713 Mercruiser anode
12713 Mercruiser anode

Item 20
P/N 12713
Gimbal housing anode OEM 98825A4 $19.29

85656 Seal
85656 Seal

Item 21
P/N 85656
Anode seal OEM 12077 $9.29

32160 gasket
32160 gasket

Item 22
P/N 32160
Trim cylinders lines connector gasket (5 units) OEM 27-99506-1 $4.29

16005 plug kit
16005 plug kit

Item 23
P/N 16005
plug kit OEM 22-88847A1 $16.29

18-9031 adhesive
18-9031 adhesive

Item 23A
P/N 18-9031 U-joint, exhaust and shift cable bellow adhesive $12.29
