OMC King Cobra Gear Chart

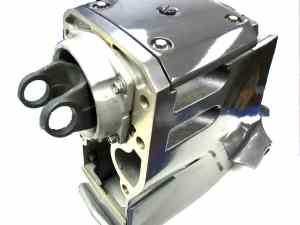

GMC 5.7 Litre Cobra / King Cobra before 1988
21-16 OMC outdrive

Long Yoke Drive Shaft Gear Ratios

  • OMC King Cobra
  • OMC Cobra
  • GMC 2.5 Litre plus drive shaft gear ratio
  • Ford 2.3 Litre plus drive shaft gear ratio
  • Mechanics will find this chart to be an additional tool when working or ordering OMC stern drive parts

OMC Cobra Model
OMC King Cobra *
Upper Gear Case
Lower Gear Case
GMC 2.5 Litre
21:18
13:26
GMC 3 Litre before 1989
21:18
13:26
GMC 3 Litre since 1989
21:21
14:26
GMC 4.3 Litre
21:19
14:26
GMC 5 Litre
21:17
14:26
GMC 5.7 Litre Cobra / King Cobra before 1988
21:16
14:26
GMC 5.7 Litre Cobra / King Cobra after 1988
24:29
17:21
GMC 554 or 502 King Cobra after 1988
21:17
17:20
Ford 2.3 Litre
21:21
13:26
Ford 351 King Cobra after 1992
24:29
17:21
Ford 5 Litre or HQ 5 Litre
21:18
14:26
Ford 5.8 Litre
21:16
14:26
Ford 7.5 Litre King Cobra before 1988
21:17
17:30
Ford 7.5 Litre King Cobra after 1988
24:29
17:20
