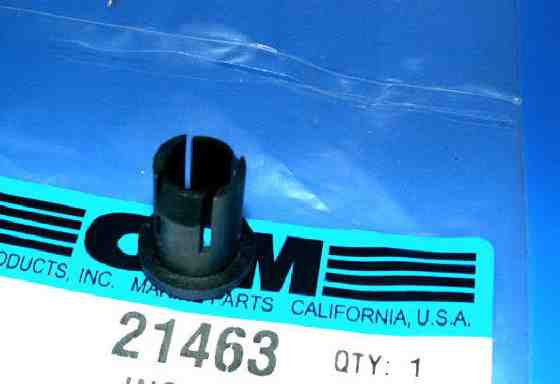

Aftermarket Mercruiser outdrive Alpha 1 insert tube for transom plate and shift cable
  • GLM # 21463
  • OEM # 14705
  • Also included in the shift cable kit
  • Mercruiser Alpha 1 insert tube compatible for drive years 1970 and up
W 21463 Alpha 1 insert.jpg

# 21463 Tube (insert) $4.29
