GLM Marine aftermarket Mercruiser Alpha 1 stern drive washer upper gearcase outdrive part
  • OEM number 12-45810
  • GLM Marine number 28330
  • Alpha 1 washer # 27 in illustrated photo
  • If more service help is required, contact tech service for help troubleshooting your stern drive at (416) 751-7326

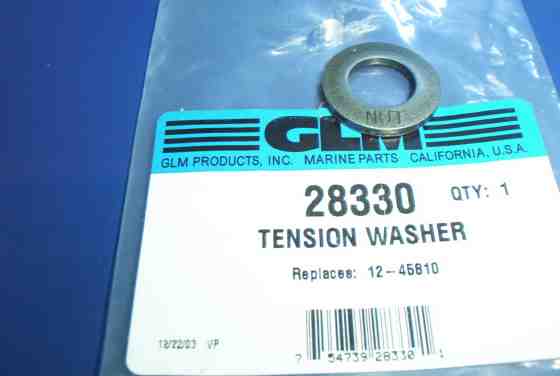

W 28330 Alpha 1 tension washer.jpg
28330 Alpha 1 tension washer

  28330 Tension washer $4.29
