GLM aftermarket parts Mercruiser Alpha One yoke - upper gear case short shaft
  • GLM #28310 Mercruiser Alpha 1 yoke - short shaft part for S/N #1684188 - up (1967 - 1997)
  • OEM # 46020-1
  • Long drive shaft yoke also available

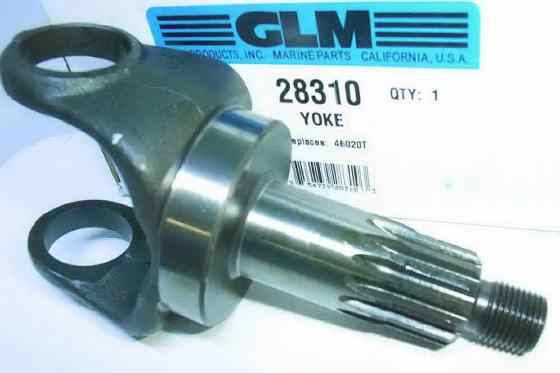

W 28310 Alpha 1 yoke shaft.jpg
28310 Alpha 1 yoke shaft

# 28310 Yoke for Mercruiser Alpha One
S/N 1684188 thru OEM # 46020-1 $59.29
