Mercruiser Alpha One stern drive engine drive shaft yoke engine bell housing part

  • #28315 Alpha 1 drive shaft yoke connected to the short yoke with u-joints
  • Compatible with Alpha one years 1983 & up and R/MR models
  • OEM # 814819A3
Mercruiser parts

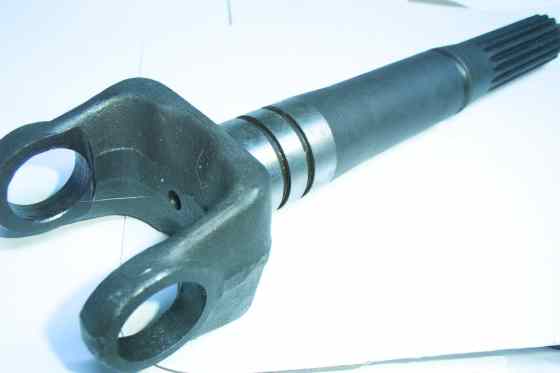

W 28315 Alpha 1 drive shaft yoke.jpg
28315 (Long) Alpha 1 drive shaft yoke

# 28315 Drive shaft yoke years 1983 and up

OEM # 814819A3 $102.29
