GLM Marine aftermarket Alpha 1 set screw transom plate and shift cable exploded parts drawing
  • GLM Marine number: 21433
  • OEM number: 10-20518
  • Ref No. 9 on our transom and shift cable drawing page
  • For Alpha 1 drive years 1984 thru 1992
  • Set screw (10 units)

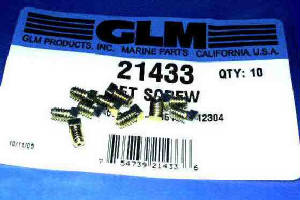

21433 Alpha 1 set screw

# 21433 Set screw (10 units) $7.29
