Bearing race and seal driver tool set for the Alpha 1 and all Mercruiser stern drives
  • Product number YF 6312
  • OEM number: N/A
  • Bearing race and seal driver
  • For all Mercruiser and Alpha series stern drives
  • Tool makes it easier to insert bearing race and seals without damaging bearing race or surrounding housing
  • Includes 9 disc sizes to fit most standard bearings
  • Turn disc over to drive seals
  • See lower gearcase and upper gearcase drawing page for bearings that can be used with this tool

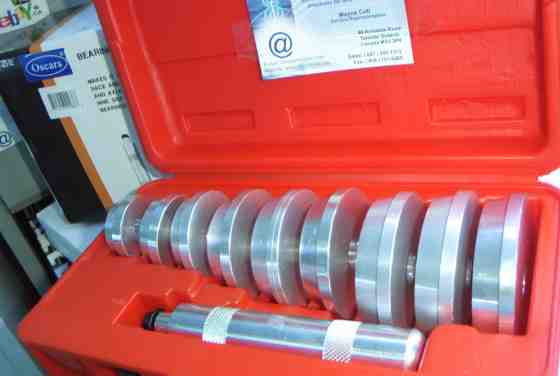

W YF 6312 Alpha 1 outdrive bearing race seal driver.jpg
YF 6312 Alpha 1 outdrive bearing race seal driver

  # YF 6312 Bearing race and seal driver tool set $79.29
