GLM Marine aftermarket Mercruiser Alpha One roller bearing for bearing carrier in lower gearcase
1963 thru 1997 Mercruiser propeller shaft bearing

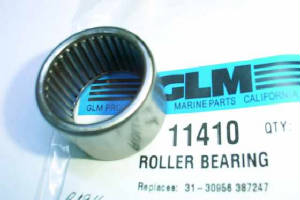

W 11410 Bearing carrier roller bearing.jpg
# 11410 Bearing carrier roller bearing

# 11410 Torrington roller bearing B1916
OEM# 31-30956 $9.89
