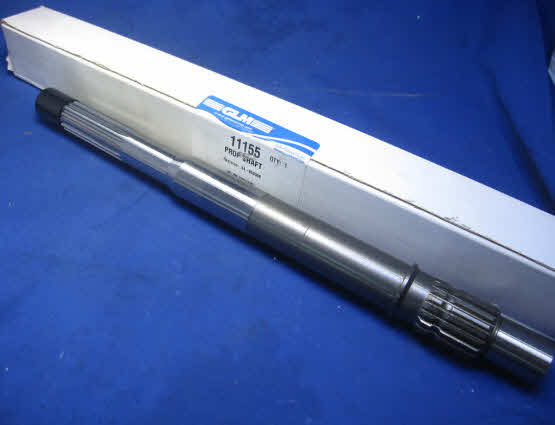

Mercruiser Alpha One prop shaft for lower gearcase with illustrated photo & drawings
  • OEM # 44-824110
  • Mercruiser Alpha One parts with illustrated photos identified by matching GLM Marine order number # 11150
  • Drawings that show internal parts and their relationship with each other are listed under Alpha One parts lower gearcase
  • Part #11155 now replaces #11150 (OEM # 824110)
# 11150 Prop shaft MC-1 / R / MR / Alpha 1 / Gen 2

# 11155 Prop shaft Alpha One

OEM # 44-850308 $329.79



Part #11155 now replaces #11150 (OEM # 824110)
