GLM Marine aftermarket Mercruiser Alpha 1 prop nut. This part contains 5 pieces.
  • OEM number :  11-827614
  • GLM Marine part number :21230
  • Prop Nut identified as part number 70A on Alpha 1 lower gearcase drawing page

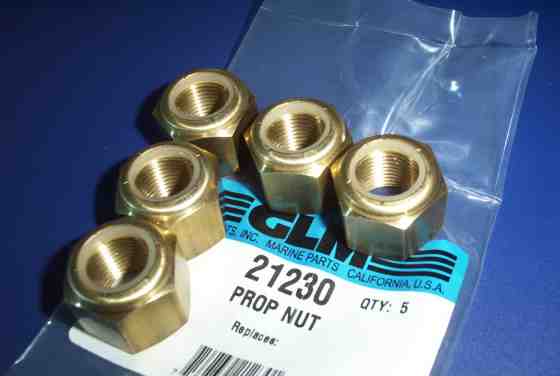

W 21230 Mercruiser Alpha 1 propeller nuts.jpg
21230 Mercruiser Alpha 1 propeller nuts

  # 21230 Alpha 1 Prop Nut (5 Units) $34.89
