GLM Marine aftermarket Mercruiser Alpha 1 tab washer. This part stops prop nut from turning.
  • OEM number 14-31210
  • GLM Marine part number: 21210
  • Tab washer identified as part number 69 on Alpha 1 lower gearcase drawing page

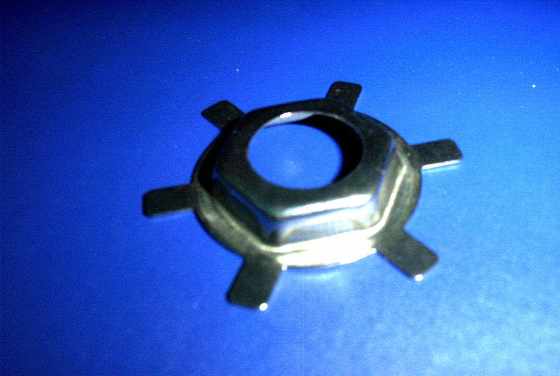

W 21210 Mercruiser Alpha 1 tab washer.jpg
21210 Mercruiser Alpha 1 tab washer

# 21210 Prop Shaft Tab Washer  $4.89
