GLM Marine aftermarket Mercruiser Alpha 1 lockwasher.
  • OEM number 13-42351-1
  • GLM Marine part number: 21760
  • Lockwasher identified as part number 67 on Alpha 1 lower gearcase drawing page

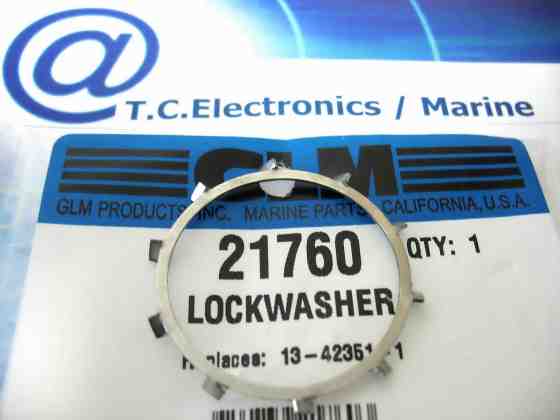

W 21760 Mercruiser Alpha 1 outdrive lockwasher.jpg
21760 Mercruiser Alpha 1 outdrive lockwasher

  # 21760 Alpha 1 Lockwasher $4.89
