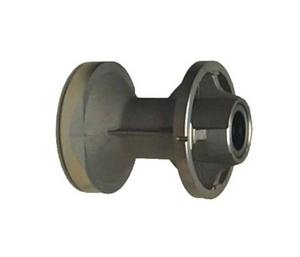

GLM Marine aftermarket Alpha one bearing carrier comes with bearings-seals and anode
  • Stern drive bearing carrier assembly #11405 OEM# 73020A14 , 73020A20 and 818763A10 come with the following parts:
  • Anode #12702
  • Bearing Carrier #11405
  • Lockwasher 2 units #21491
  • Screw 2 units #12832
  • O-Ring #83440
  • Key #11080
  • If help is required, contact our service tech for advice troubleshooting your Mercruiser stern drive

    # 11405 Bearing carrier OEM # 73020A14, 73020A20, 818763A4, 818763A10 $121.89



    Note bearing carrier assembly comes with

    • # 12702 Anode,
    • # 11405 Bearing Carrier
    • # 21491 lockwasher (2)
    • # 12832 Screw (2)
    • # 83440 O-Ring
    • # 11080 Key
