Yamaha lower unit VZ-200-VZ-300 hp. years 2004-2009

Fits Models: VZ-200 hp. (2005-2009), VZ-225 hp. (2003-2009), VZ-250 hp. (2003-2009) and VZ-300 hp. (2004-2009)

Included in Kit P/N 12261
+
Included in Kit P/N 12068
Included in Kit P/N 12263
-
Included in Kit P/N 12258

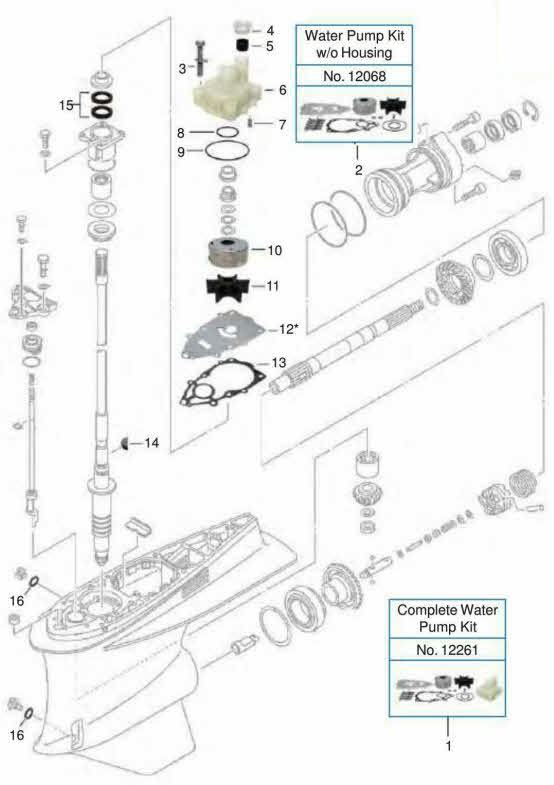

Yamaha exploded view lower unit drawings
Search by part number or description here
Yamaha outboard VZ 200-VZ 300 hp.

Yamaha outboard VZ 200-VZ 300 hp.

12261 Water pump kit

12261 Water pump kit

Item 1

P/N 12261 OEM 60X-W0078-00 + 61A-44311-01-00 Complete Water Pump Kit

12068
12068

Item 2

P/N 12068 OEM 60X-W0078-00 Water Pump Kit With Out Housing



Item 3 •+.-

P/N 22504 OEM 90119-08M14 Bolt w/ Washer (4)



Item 4

P/N 12839 OEM 6E5-44312-00-00 Cover, Water Pump Housing



Item 5

P/N 38300 OEM 6E5-44365-00-00 Damper



Item 6 * -

P/N 12074 OEM 61A-44311-01-00 Water Pump Housing



Item 7 • + -

P/N 12808 OEM 93606-12019 Pin, Dowel (2)



Item 8 -

P/N 84300 OEM 93210-37M67 O ring



Item 9 • + -

P/N 84295 OEM 93210-86M38 O ring



Item 10 • + -

P/N 12870 OEM 61A-44322-02 Pump Cup



Item 11 • +  .  -

P/N 89930 OEM 6E5-44352-01-00 Impeller



Item 12A • +

P/N 12519* OEM 60X-44323-00 Wear Plate for 2-Stroke



Item 12B . -

P/N 12529* OEM 6P2-44323-00-00 Wear Plate



Item 13 • + -

P/N 38006 OEM 60X-44315-A0 Gasket, Water Pump



Item 14 + - -

P/N 89588 OEM 90280-04M05 Key, Woodruff



Item 15

P/N 85222 OEM 93101-28M16-00 Oil Seal



Item 16

P/N 38015 OEM 90430-08020 Gasket, Drain Fill
