Yamaha drawing 25-30-40-50 hp. Years 1997-2002

25 hp. 1999, (2001-2002) 30 hp. (1997-1999), (2001-2002) 40-50 hp.

Included in Kit P/N 12285
+ Included in Kit P/N 87833

Search by part number or description here

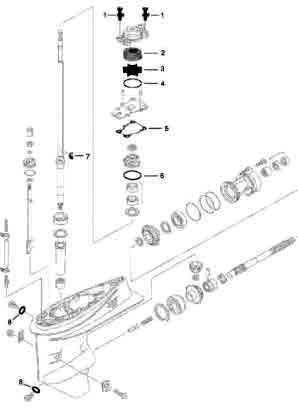

Yamaha outboard 25-30-40 hp.

Yamaha outboard 25-30-40 hp.

12285

12285

Item 1
P/N 12285 OEM 6J8-W0078-A2 Water Pump Kit With Out Housing



Item 2
P/N 87833 OEM 6J8-W0001-C2 Gear-case Seal Kit



Item 3 •
P/N 22508 OEM 90119-08M13-00 Bolt With Washer (2)



Item 4 •
P/N 22292 OEM 90119-08M34-00 Bolt With Washer (2)



Item 5
P/N 12452 OEM 6J8-4.4311-00-00 Housing



Item 6
P/N 12875 OEM 663-44366-00-00 Damper, Water Seal



Item 7 •
P/N 12864 OEM 663-44322-00 Pump Cup

89900  Impeller OEM 6H6-44352-02

89900  Impeller OEM 6H6-44352-02

Item 8 •
P/N 89900 OEM 61-14-44352-02-00 Impeller



Item 9 •+
P/N 38106 OEM 663-44315-A0 Gasket



Item 10 •
P/N 12526 OEM 663-44323-00 Wear Plate



Item 11 •+
P/N 38011 OEM 663-44324-00 Gasket, Wear Plate



Item 12 •+
P/N 38010 OEM 663-443160-A0 Gasket



Item 13 +
P/N 84260 OEM 93210-41042 O ring



Item 14 +
P/N 85228 OEM 93101-23070 Oil Seal



Item 15 •
P/N 89587 OEM 90280-03024 Key, woodruff



Item 16 +
P/N 85231 OEM 93101 -20M07 Oil Seal



Item 17 +
P/N 84275 OEM 93210-60MA3 O ring



Item 18+
P/N 38015 OEM 90430-08020 Gasket, Drain Fill
