Yamaha outboard water pump kit 9.9 and I5 hp.

Water pump models: F-15 hp. (1998-2005), F-9.9 hp. (2005), 9.9 hp. (2005) 9.9 hp. (1996-2005) and 15 hp. (1996-2004)

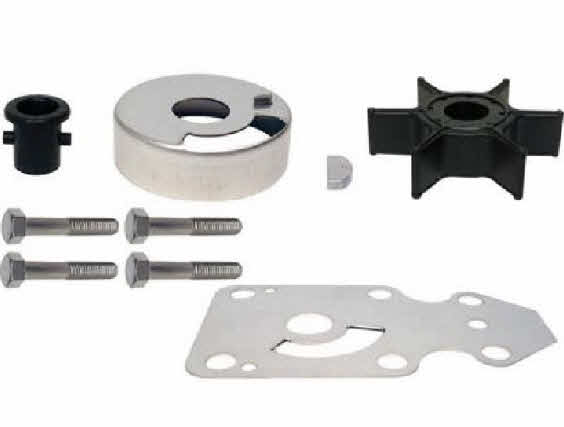

Bolts, water seal, pump cup, wear plate, woodruff key and impeller
  • F-9.9 hp. year 2005
  • T-9.9 hp. year 2005
  • 9.9 hp. years 1996 to 2005
  • I5 hp. years 1996 to 2004
  • F-15 hp. years 1998 to 2005

Exploded view Yamaha outboard drawings
Search by part number or description here

Qty
12066 Water pump kit

12066

P/N 12066 Yamaha water pump kit with out housing OEM: 63V-W0078-01

P/N 12087 Complete water pump kit with housing OEM 63V-W0078-01 + 63V-44301-00-00 $82.29

Qty

OEM number and water pump parts description

4

P/N 22502 Bolt OEM 97080-08045

1

P/N 12865 Damper, water seal OEM: 647-44366-00

1

P/N 12445 Water pump housing OEM: 63V-44301-00-00

1

P/N 12809 Pump cup OEM 63V-44322-00

1

1

P/N 12517 Wear plate OEM 682-44323-00

1

P/N 89589 Woodruff key OEM 664-44338-00
