Yamaha outboard bearing carrier

Sierra aftermarket Yamaha outboard lower unit bearing carrier

  • Sierra aftermarket Yamaha outboard bearing carrier with o-ring
  • OEM #688-45331-00-94
  • Lower unit seal kits are available
Exploded view lower unit drawings
Search by part number or description here
bearing carrier

bearing carrier

Pictures

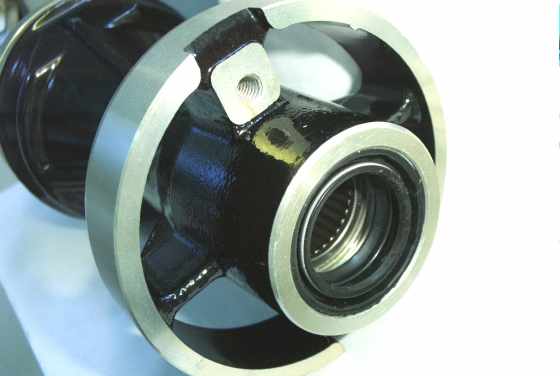

Lower unit bearing carrier


Bearing carrier

F40 hp. year 1999
50/T50 hp. years 1996 to 2000
60 hp. years 2002 and 2003
C60 hp. years 1996 to 2001
E60 hp. years 1995 to 1999
P60 hp. years 1991 to 1999
70 hp. years 1984 to 2003
C70 hp. years 2000 and 2001
C75 hp. years 1994 to 1996
E75 hp. years 1995 to 2000
P75 hp .years 1996 to 1999
C80 hp. year 1997
C85 hp. years 1991 to 1996

# 018-27820 $142.29

OEM 688-45331-00-94



Bearing carrier

E48 hp. year 1995
E48 hp. 1997 to 2000
C55 hp. years 1991 to 1995

# 018-27730 $131.29

OEM 663-45331-00-94
