Volvo/OMC Cobra SX OMC parts drawing (Transom)

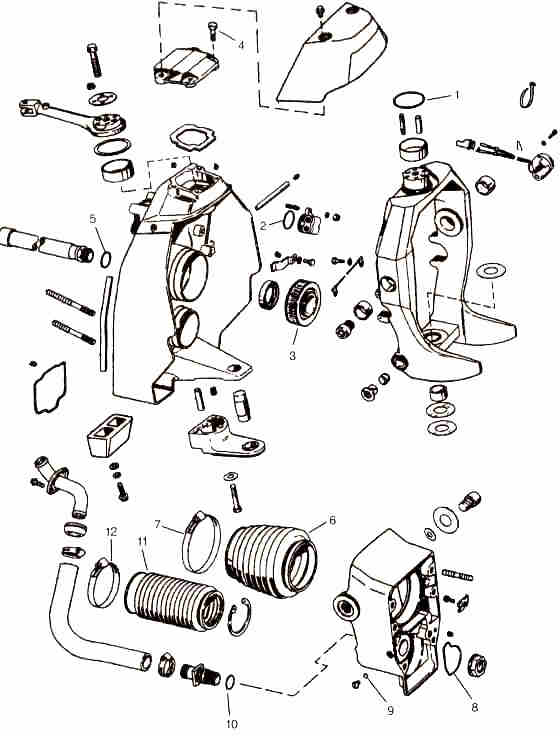

SX outdrive transom assembly parts drawing

  • Parts are compatible with Volvo OMC Cobra SX transom years 1994 - 1998
  • Use bellows adhesive when installing exhaust bellow OEM 3850426 and u-joint bellow OEM 3854127 for a proper seal
  • OMC Cobra 1986 - 1993 transom parts transom parts also available

transom parts

transom parts

21963 service kit

21963 service kit

Item 3, 6, 7, 8, 11 & 12
P/N 21963 Transom service kit
# 89200 U-joint bellow
# 89190 Exhaust bellow
# 01090 Hose clamp (1)
# 01070 Hose clamp (1)
# 21900 Gimbal bearing
# 86300 Transom seal $128.29

21900 gimbal bearing

21900 gimbal bearing

Item 3
P/N 21905
Gimbal bearing OEM 983937 $44.29

89200 u joint bellow

89200 u joint bellow

Item 6
P/N 89200 Drive shaft u joint bellow OEM 3854127-2 $36.29

89190 exhaust volvo penta sx

89190 exhaust volvo penta sx

Item 11
P/N 89190
exhaust bellow OEM 3850426-2 $25.29
