Used Mercruiser upper drive shaft housings with photos and gear ratios
  • Used upper drive shaft assemblies for the Mercruiser
  • 2 photo profiles for each unit
  • Gear ratio specified for upper units
  • Used Mercruiser parts also available
  • For information on our large selection of used upper units, phone (416) 751-7326
W Used Mercruiser 1 upper.jpg

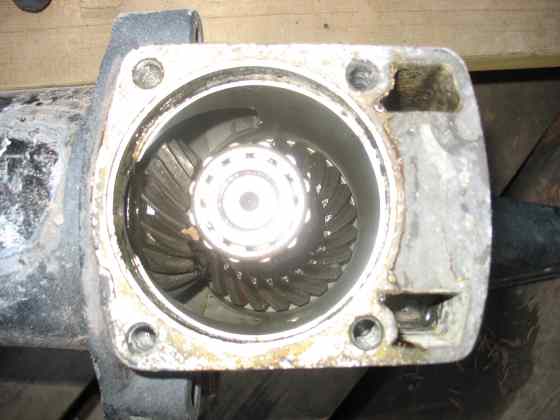

Used Mercruiser upper - top profile
W Used Mercruiser 2 upper.jpg

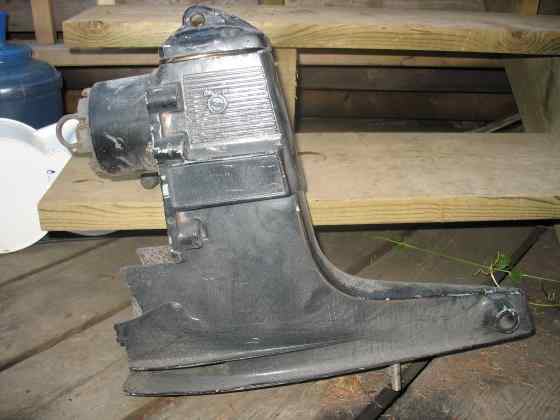

Used Mercruiser upper - side profile

20/22 gear ratio
Used Mercruiser upper unit $349.29

Call for availability
