Aluminum / magnesium trim tab anode for lower unit gearcase
  • GLM marine numbers 12670 aluminum OEM # 31640T4 /
    12752 for magnesium anode OEM 31640T6
  • Trim tab used for steering sterndrive
    Anode stops or slow down electrical errosion of outdrive

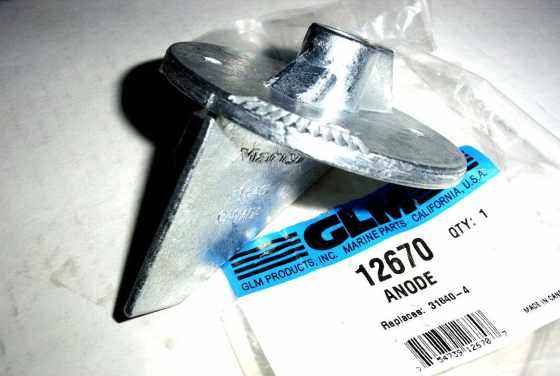

12670 Mercruiser aluminum trim tab anode

# 12670 Aftermarket Mercruiser part aluminum anode trim tab OEM # 31640T6
(Note: Requires bolt # 21740 not included) $9.79

12671 Magnesium trim tab anode

# 12671 GLM marine aftermarket magnesium
anode trim tab OEM # 31640T6 for fresh water
(Note: Requires bolt # 21740 not included) $16.79

Allen bolt for trim tab anode with 3/8 inch N.C. thread

# 21740 Allen bolts for anode trim tab (2 units) $4.79

Tech tip: Anode or trim, can be moved to make up for steering pull from outdrive. This drag will pull steering wheel to one side fo the boat but only when boat is on plane
