Mercruiser gear set upper gearcase rebuild kit

Outdrive Upper Housing Gear and Bearing Service Parts Kits

  • Compatible with Mercruiser 4 cylinder, 6 cylinder, V6 and V8 models years 1970 - 1990
  • Parts included in kit shown in drawing below - listed by GLM and Mercury numbers
  • Includes all components required to rebuild your upper gearcase after a gear failure
  • Technical support available by phone
  • Tech support Exploded view drawings

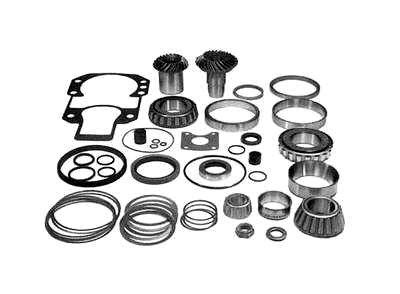

11245 Mercruiser Gearcase Housing Rebuild Kit 43-803101T1

11245 Mercruiser Gearcase Housing Rebuild Kit 43-803101T1

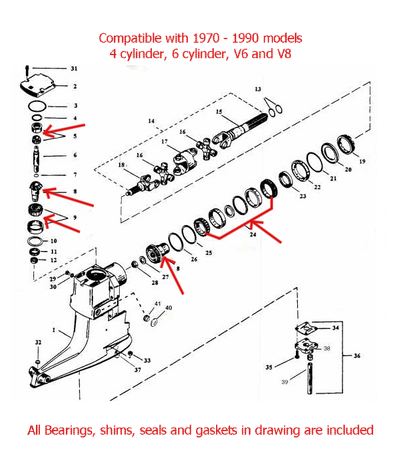

Outdrive Breakdown Parts

Outdrive Breakdown Parts

P/N 11215 1.50 & 1.47 ratio gear set 20/22 OEM 43-803116T1 $532.95

888, 225, 898/228, 260 V8 motors (1971 - 1990)
Serial numbers
3106717 - 0D4690000

P/N 11225 1.65 & 1.62 ratio gear set 24/24 OEM 43-803112T1 $699.95

165, 6 cylinder inline motors
(1970 - 1990)
Serial numbers 2763442 - 0D4690000

P/N 11235 1.84 & 1.81 ratio gear set 17/19 OEM 43-8033114T1 $628.95

470, 485 and V6 motors
(1976 - 1990)
Serial numbers
4208730 - 0D4690000

P/N 11245 1.98 & 1.94 ratio gear set 20/24 OEM 43-803101T1 $599.95

120, 140 and 4 cylinder motors
(except 470) (1970 - 1990)
Serial numbers
2791957 - 0D4690000
