Mercruiser water pumps kit *Years 1965 to 1969

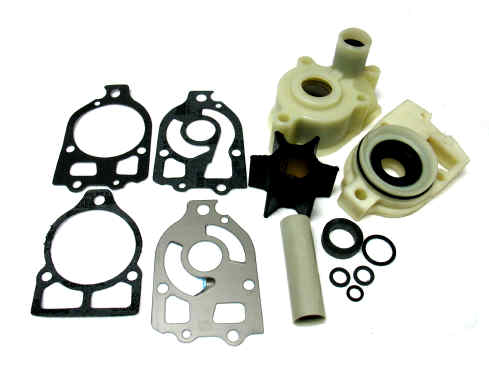

Complete Water Pump Assembly with Parts for Mercruiser MC-1 Outdrives

  • Complete water pump impeller kit includes water pump housing with flush screw, impeller, key and seals
  • Compatible with Mercruiser 1 sterndrive models from 1965 - 1969 with serial numbers 2495186 - 2763441
  • Works with 120/140 inline 4 cylinder 1.98 ratio serial numbers 2062141 - 2791956 (1965 - 1969)
  • 160 6 cylinder 1.65 ratio serial numbers 2065190 - 2762441 (1967 - 1969)

Mercruiser Tech support Exploded view drawings
Search by part number or description here

12130

12130

P/N 12130 OEM N/A Mercruiser sterndrive water pump assembly $63.00

Our kit includes the impeller key P/N 11070 OEM 28-56654.
Most competitor kits do not include the key.

Parts Included in Kit

89840 Impeller

89840 Impeller

P/N 89840 OEM 47-89984T4 Water pump impeller $17.00

11070 Key

11070 Key

P/N 11070 OEM 28-56654 Key $4.00

12410 housing

12410 housing

P/N 12410 OEM 46-96148T1 water pump housing $28.00



P/N 12333 OEM 46-48748T1 Water pump base $25.00

12820 Tube guide

12820 Tube guide

P/N 12820 OEM 23-29804T Guide tube $4.00

12810 cup

12810 cup

P/N 12810 OEM 48752 Water pump cup $5.00

12510 Wear plate

12510 Wear plate

P/N 12510 OEM 32435 Wear plate $4.00

31020 Base gasket

31020 Base gasket

P/N 31010 OEM 27-85608-1 Gasket $4.00
