MerCruiser upper drive shaft housing ring manufactured by GLM Marine aftermarket parts
  • Ring for the upper drive shaft housing
  • Connects to part #19 bearing retainer nut and part #21 (O-ring) in upper gearcase drawing page
  • Manufactured by GLM Marine for use with the MerCrusier upper gearcase
  • OEM # 35983

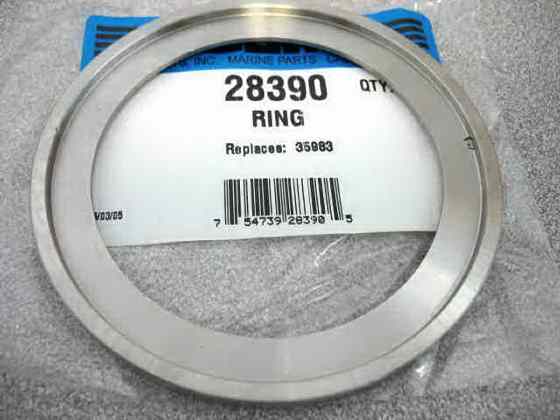

W 28390 Mercruiser ring.jpg
28390 Mercruiser ring

 28390 Ring $8.29

Please see part #20 on our upper gearcase drawing page
