GLM Marine aftermarket Mercruiser gear set and clutch dog with lower unit gearcase exploded drawing

  • Cost-effective aftermarket Mercruiser gear sets and clutch dogs are made from superior materials with 1 years warranty
  • Drive shaft pinion bearing removal and installation tool number 90295 for use with Mercruiser outdrives. Pinion nut adaptor kit number 90210 hold pinion nut when removing or installing lower unit gear sets
  • If help is required, contact our service technition for advice troubleshooting your Mercruiser stern drive unit at (416) 751-7326
Aftermarket Mercruiser parts for lower unit
W 11300 Mercruiser gear set.jpg

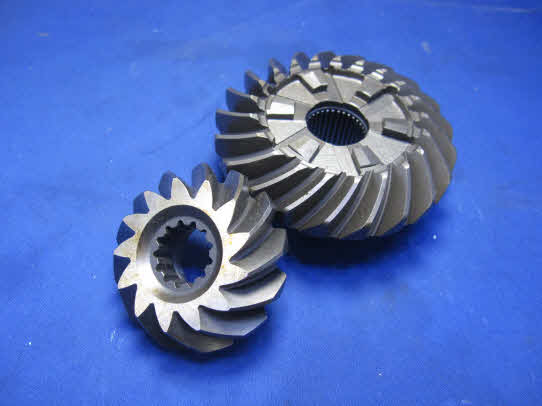

# 11300 Complete aftermarket mercruiser gear set OEM # 43-96084A4

 Model #         Years         serial number

  • 120 / 140 1972 thru 82 #3469428 thru 6225576
  • 470 / 485 1976 thru 82 #4208730 thru 6225575
  • 160 Note N/A will not fit
  • 165 1972 thru 1981 #3469428 thru
  • 888 1971 thru 1977 #3106717 thru
  • 225 / 233 1974 thru 1977 #3856268 thru
  • 898 / 228 1977 thru 82 #4782330 thru 6225578
  • 250 / 260 1977 thru 82 #4791300 thru 6225576
  • type R 1983 only  #6225577 thru

# 11300 ( 11100 + 11020 ) Complete aftermarket lower gearcase mercruiser gear set
OEM# 43-96084A4 $316.98
