OMC Stringer or 800 series 1978 thru 1986 Prestolite replacement tilt motor
  • Prestolite type replacement tilt motor
  • Years 1978 thru 1986
  • OEM numbers 982706 or 982058
  • All models except 2.5 and 3.0 liter
  • 12 Volt unit 35 amp draw
  • Use with 50 amp fuse OEM # 98019

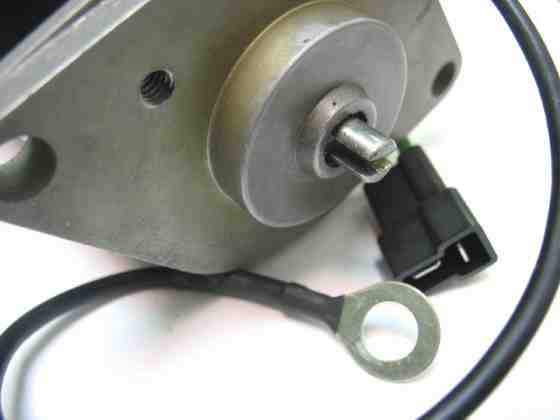

W Prestolite tilt motor 1978 thru 1986.jpg
Prestolite tilt motor 1978 thru 1986

# 018-67550 Prestolite tilt motor 1978 thru 1986 $195.89

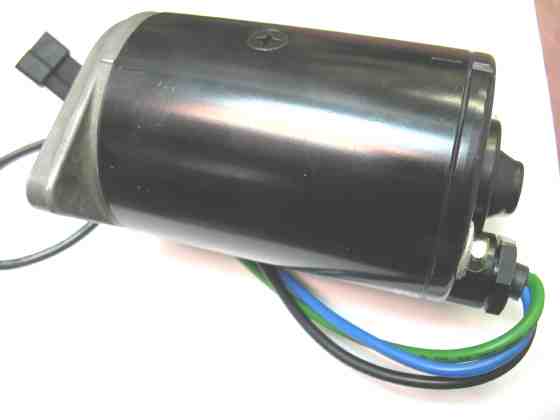

W Electric tilt motor B.jpg
Electric tilt motor years 1978 thru 1986

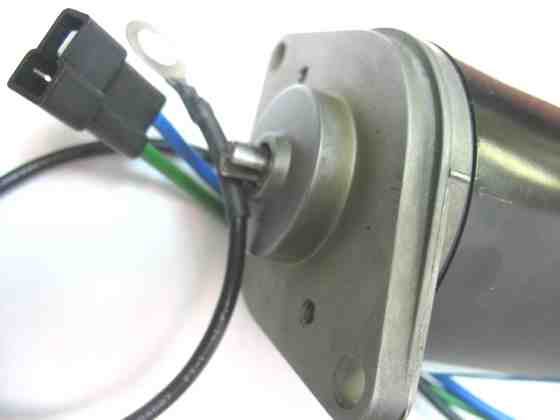

W Electric tilt motor C.jpg
Electric tilt motor years 1978 thru 1986

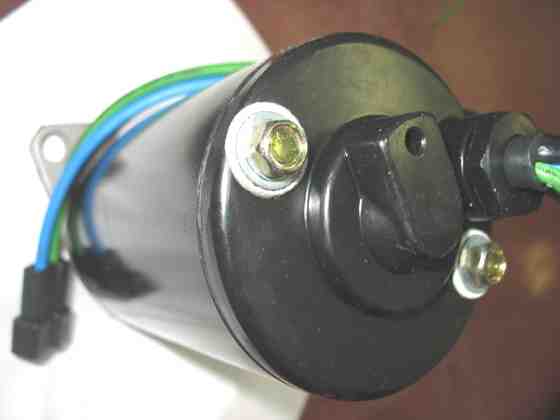

W Electric tilt motor D.jpg
Electric tilt motor years 1978 thru 1986
