Evinrude / Johnson outboard parts illustrated drawing
2-3 cylinder loop charged small gearcase
Newer style lower unit years 1989 thru 2005

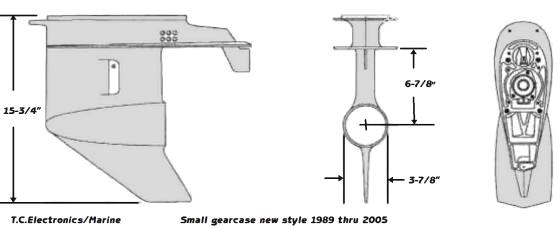

  • Physical characteristics 15 3/4 inches tall with 3-7/8 inch hub
  • Straight at the trailing end of the gear housing and the fin
  • Pointed at the trailing end of the cavitation plate
  • Six holes above the cavitation plate thats 6-7/8 from centre of propeller shaft
  • External water intake screens
  • Includes speedo pitot
Johnson/Evinrude outboard parts drawing
2 or 3 Cylinder loopcharge small gearcase years 1989 thru 2005

Evinrude/Johnson outboard parts exploded drawing for 2 and 3 cylinder loop charged small gearcase newer style lower unit years 1989 thru 2005
