GLM aftermarket Evinrude / Johnson outboard head gasket applications with horsepower and year for 4 hp. to 300 hp. powerheads.

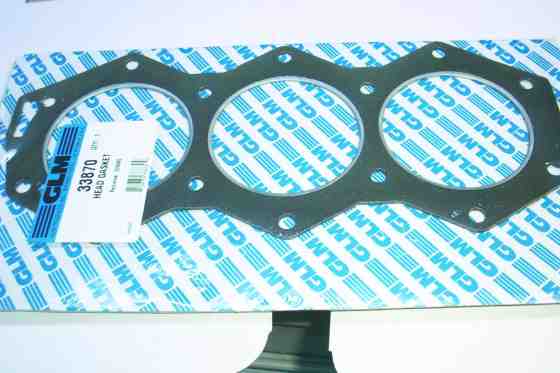

W 33870 Head gasket.jpg
CLICK HERE FOR HEAD GASKETS
  • GLM Marine aftermarket head gasket application
  • Evinrude / Johnson outboard parts year 1974 up
  • Outboard model numbers

Evinrude / Johnson Outboard Motor Model
Year
GLM Marine Number
4 horsepower
1974 -1980

# 34010 (2 units) $5.98


2.5, 3, 4, 4.5, Ultra, Excel 4
1981- 1993

# 33860 $5.98


6hp
1974-1979

# 33830 $6.98


9.0, 15hp
1974- 1992

# 34140 $7.98


25hp.
1977- 1978

# 35840 $15.98


35hp.
1976 -1978

# 35840 $15.98


40hp.
1974- 1985

# 35990 $16.98


40, 45, 48, 50, 55, 60hp.
1976- 1997

# 34250 $21.98


60hp. 3cyl.
1986- 1988

# 33400 $15.98


70hp.
1974 -1985


# 33400 $15.98


60hp.
1989- 1997

# 34280 $15.98


70hp.
1986- 1997

# 34280 $15.98


75hp.
1975- 1978

# 35830 $40.98


115, 135, 140hp.
1973- 1978

# 33540 $11.98


85, 88, 90, 100, 110, 115 hp.

1978- 1993


# 33540 $11.98


140 hp.
1977- 1984

# 33540 $11.98


115hp.
1985

# 35820 $23.98


135, 140 hp.
1973- 1984

# 35820 $23.98


120,140 hp.
1985-1987

# 34400 $21.98

120,140 hp.
1988-1993

# 35930 $15.98

150,155,175,185,200, hp.Cross flow

1976-1992

# 33870 $17.98

235 hp.
1978-1979

# 33870 $17.98

150,155,175,185,200 hp. Cross flow

1976-1985


# 35940 $38.98

235 hp.
1978-1979

# 35940 $38.98

175 hp.
1986-1992

# 34240 $23.98

235 hp.
1980-1985

# 34240 $23.98

200,225 hp.
1986-1987

# 35950 $23.98

200,225 hp. Loop charged
1988-1993

# 34590 $19.98

235 hp.
1980-1985

# 35960 $36.98

2.6XP-GT
1983-1985

# 35960 $36.98

250,275 hp. 3.6
1988-1993

# 35970 $36.98

300 hp..
1993-1994

# 35970 $36.98
