GLM aftermarket Evinrude / Johnson outboard gears or gear set applications with horsepower and year lower unit repair guide
  • GLM Marine aftermarket gear set application
  • Evinrude / Johnson outboard parts year
  • Outboard motor horsepower
  • Forward and pinion gear
  • Reverse gear
  • Clutch dog
Need replacement Johnson gear set Click Here

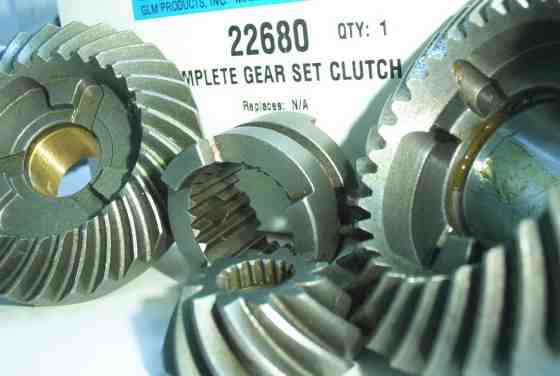

W Johnson gear set applications sample 22680.jpg
Johnson gear set applications sample # 22680

Evinrude / Johnson Outboard Motor Horsepower
Years
Gear set with clutch
Forward and pinion gear
Reverse gear
Clutch dog
25D
1989 -1995
22660
22661
22662
22663
35 (AR, AE,& AT only)
1987
22680
22681
22681
22683
40
1984 -1988
22680
22681
22681
22683
40
1989 -1997
22660
22661
22662
22663
48
1987 -1988
22680
22681
22681
22683
48
1989 -1996
22660
22661
22662
22663
50
1989 -1997
22680
22681
22681
22683
50
1989 -1997
22660
22661
22662
22663
50 (3CYD. Model)
1995 -1997
22670
22671
22672
22673
55 Electric start
1979 -1981
22680
22681
22681
22683
60 Electric start
1980 -1985
22680
22681
22682
22683
60 (3 CYD. 20" Model)
1986 -1997
22670
22671
22672
22673
65 Comm.
1984 -1997
22670
22671
22672
22673
70 E Model
1975
22670
22671
22672
22673
70 20" Model
1976 -1997
22670
22671
22672
22673
75 20" Model
1975 -1988
22670
22671
22672
22673
V 4

85
1977
-
-
22632
22633
85
1978 -1980
22630
22631
22632
22633
85
1991 -1995
22630
22631
22632
22633
88
1987 -1996
22630
22631
22632
22633
90
1981 -1997
22630
22631
22632
22633
90 V4 60 degree 2.25:1 "O" Gearcase
1995 -1999
22650
22651
22653
22613
100
1979 -1980
22630
22631
22632
22633
100
1989 -1990
22630
22631
22632
22633
100    2.25:1 "O" Gearcase
1991
22650
22651
22653
22625
100 Comm. (S Prefix only)
1989 -1990
22630
22631
22632
22633
100 Comm. 2.25:1 "O" Gearcase
1987,92,93
22650
22651
22653
22625
100 Comm. D 2.25:1 "O" Gearcase
1994 -1999
22650
22651
22653
22625
100 Comm. (E.J. Model)  2.25:1 "O" Gearcase
1989
22650
22651
22653
22625
100 Comm. (2 pcs D / shaft) 2.25:1 "O" Gearcase
1990
22650
22651
22653
22625
110
1986 -1989
22630
22631
22632
22633
112
1994 -1996
22630
22631
22632
22633
115
1977
22630
22631
22632
22633
115
1990-1997
22630
22631
22632
22633
115 V4 60 degree  2.25:1 "O" Gearcase
1995-1999
22650
22651
22653
22625
120
1986-1992
22630
22631
22632
22633
120   2.25:1 "O" Gearcase
1990
22650
22651
22653
22625
120 TL, TX
1993
22630
22631
22632
