Mercury outboard propeller shafts

GLM aftermarket Mercury lower unit propeller shafts

  • 35 to 250 hp. lower unit Mercury propeller shaft compatibility
  • Also works with some Mariner models
  • Manufactured by GLM Marine
  • OEM number cross reference listed beside each shaft

Exploded view drawings
Search by part number or description here

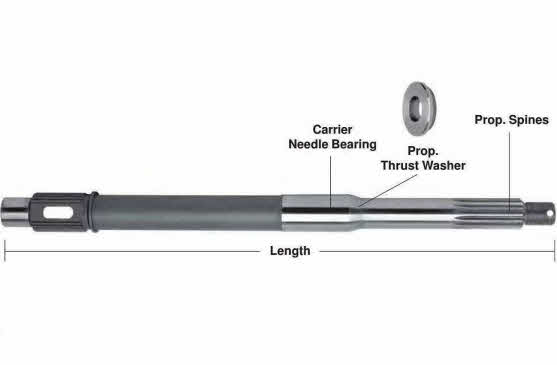

GLM Marine help

GLM Marine help

Propeller shaft with hp. and year

GLM aftermarket propeller shaft

GLM aftermarket propeller shaft

P/N 11150
OEM 44-824110
Late 3.01- V6 Gearcase
Length 15-1/2 inch
Carrier Needle Bearing 1-3/16 inch
Prop Splines 15
Prop Thrust Washer P/N 21301

*Substitued to P/N 11155

V-200 hp. DFI w/ ratcheting style clutch
USA. 0G386496-0G437999

V-200 hp. DFI w/ non-ratcheting style clutch
USA. 0G438000-0G589999

V-200 hp. DFI
USA. 0G590000 and Up

V-225 hp. (3.0L) w/ ratcheting style clutch
USA. 0D280813-0G437999

V-225 hp. (3.0L) w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-225 hp. DFI w/ non-ratcheting style clutch
USA. 0G590000 and Up

V-225 hp. EFI w/ ratcheting style clutch
USA. 0G129222-0G437999

V-225 hp. EFI w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-250 hp. EFI w/ ratcheting style clutch
USA. 0G129222-0G437999

V-250 hp. EFI w/ non-ratcheting style clutch
USA. 0G438000 and Up

P/N 11151
OEM 44-94148
Late V6 Alpha Gearcase
Length 15-1/2 inch
Carrier Needle Bearing 1-3/16 inch
Prop Splines 15
Prop Thrust Washer P/N 21301
$508.95

V-135 hp. w/ ratcheting style clutch
USA. 0A904646-0G437999

V-135 hp. w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-135 hp. DFI w/ non-ratcheting style clutch
USA. 0G590000 and Up

V-150 hp. w/ gear housing casting #1647-8675C
USA. 4868998-0A904645

V-150 hp. w/ no-pre-load pin in driveshaft
USA. 4868998-0A904645

V-150 hp. w/ ratcheting style clutch
USA. 0A904646-0G437999

V-150 hp. w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-150 hp. EFI w/ ratcheting style clutch
USA. 0D082000-0G437999

V-150 hp. EFI w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-150 hp. DFI w/ non ratcheting style clutch
USA. 0G590000 and Up

V-150 hp. XR6 w/ 4 3/4" torpedo
USA. 0D082000-0G303045

V-150 hp. XR6 w/ ratcheting style clutch
USA. 0G303046-0G437999

V-150 hp. XR6 w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-175 hp.
USA. 5393737-6618750
AUS. 80654250 and Up

V-175 hp. w/ ratcheting style clutch
USA. 6618751-0G437999

V-175 hp. w/ non ratcheting style clutch
USA. 0G438000 and Up

V-175 hp. EFI w/ ratcheting style clutch
USA. 0D000750-0G437999

V-175 hp. EFI w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-200 hp. w/ pre-load pin in driveshaft
USA. 4839034-6625220
AUS. 8061595 and Up

V-200 hp. w/ ratcheting style clutch
USA. 6625221-0G437999

V-200 hp. w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-200 hp. EFI w/ ratcheting style clutch
USA. 0C100861-0G437999

V-200 hp. EFI w/ non-ratcheting style clutch
USA. 0G438000 and Up

V-220 hp. Laser
USA. 0B117316 and Up

V-225 hp. (2.4L)
USA. 5628028 and Up

P/N 11152
OEM 44-93003
Early Inline 6 Gearcase
Length 15-1/4 inch
Carrier Needle Bearing 1-3/16 inch
Prop Splines 15
Prop Thrust Washer P/N 21301
$385.95

4 cylinder

65 hp. (650)
N/A. 2503991-2874263
N/A. 2874264-3293183

75 hp.
USA. 6432901 and Up
BEL. 9393856 and Up
CAN. 7208573 and Up

80 hp. 800
N/A. 2559001-3144218
N/A. 3144219-3493912

80 hp. (80, 800)
USA. 4831999-6432900
AUS. 8050200 and Up
BEL. 9177626-9393855
CAN. 7110998-7208572

85 hp. (850)
USA. 3493913-4590511
AUS. 8005440-8043774
BEL. 9011604-9139349
CAN. 7010108-7091097

85 hp. (850)
USA. 4590512-4831998
AUS. 8043775-80500199
BEL. 9139350-9177625
CAN. 7091098-7110997

6 cylinder

90 hp. (90, 900)
USA. 4845301 and Up
AUS. 8060545 and Up
CAN. 7111698 and Up

115 hp. (115, 1150)
USA. 4112635 and Up
AUS. 8027115 and Up
CAN. 7047258 and Up

125 (1250) with fine thread prop shaft
N/A. 2314956-2839368

135 hp. (1350)
N/A. 2839369-2940020

135 hp. (1350)
N/A. 2940021-3293233

140 hp. (1400)
N/A. 3293234-3502805

140 hp. (140, 1400)
USA. 4865678 and Up
AUS. 8052650 and Up
CAN. 7112773 and Up

150 hp. (1500)
USA. 4121435-4865677
AUS. 8028040-8052649
CAN. 7048783-7112772

P/N 11153
OEM 44-12238T
Late 3 Cylinder
L4, V6, XR4 & XR6 Gearcase
Length 15-1/2 inch
Carrier Needle Bearing 1-3/16 inch
Prop Splines 15
Prop Thrust Washer P/N 21350
$434.95

60 hp. (3cyl.) (Sea pro / Marathon / Bigfoot)
USA. 0D000750-0G589999
(w/ 3 Jaw reverse clutch)
BEL. 9683055-9973099


70 hp. (3 cyl.) w/ 3 Jaw reverse clutch
USA. 0A996142 and Up
BEL. 9483121 and Up

75 hp. (3cyl.) w/ 3 Jaw reverse clutch
USA. 0C222000-0G760299
BEL. 9589039-0P016999

80 hp. (3cyl.) w/ 3 Jaw reverse clutch
USA. 0A996142 and Up
BEL. 9483121 and Up

90 hp. (3cyl.) w/ 3 Jaw reverse clutch
USA. 0A996142-0G760299
BEL. 9483121-0P016999

100 hp. (4cyl.) w/ 3 Jaw reverse clutch
USA. 0B209468-0G760299
BEL. 9523034-0P016999

115 hp. (4cyl.) w/ 3 Jaw reverse clutch
USA. 0C100000-0G760299
BEL. 9559771-0P016999

125 hp. (4cyl.) w/ 3 Jaw reverse clutch
USA. 0D283222-0G760299
BEL. 9793577-0P016999

V-150 XR4 w/ Gear house casting #1655-9572C
USA. 0B242885-0D081999

V-150 XR4 w/ Gear house casting #1674-814247C
USA. 0B242885-0D081999

V-150 XR6 w/ 4 1/4" Torpedo
USA. 0D082000-0G303045

P/N 11155
OEM 44-850308
Late 3 & 4 Cylinder gearcase
Length 15-1/2 inch
Carrier Needle Bearing 1-3/16 inch
Prop Splines: 15
Prop Thrust Washer P/N 21350
$660.95

\

3 cylinder

55 hp.
USA. 0D000750 and up
BEL. 9741042 and up

60 hp. Sea pro / Marathon / Bigfoot with 6 jaw reverse clutch
USA. 0G590000 and up
BEL. 9973100 and up


70 hp. with 3 jaw reverse clutch
USA. 0A996142 and up
BEL. 9483121 and up

75 hp. with 6 jaw reverse clutch
USA. 0C222000-0G760299
BEL. 9589039-0P016999

75 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

80 hp.
USA. 0D000750 and up
BEL. 9741042 and up

60 hp. Sea pro / Marathon / Bigfoot with 6 jaw reverse clutch
USA. 0G590000 and up
BEL. 9973100 and up


70 hp. with 3 jaw reverse clutch
USA. 0A996142 and up
BEL. 9483121 and up

75 hp. with 6 jaw reverse clutch
USA. 0C222000-0G760299
BEL. 9589039-0P016999

75 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

80 hp. with 6 jaw reverse clutch
USA. 0A996142 and up
BEL. 9483121 and up

90 hp. with 6 jaw reverse clutch
USA. 0A996142-0G760299
BEL. 9483121-0P016999

90 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

4 Cylinder

100 hp. with 6 jaw reverse clutch
USA. 0B209468-0G760299
BEL. 9523034-0P016999

100 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

115 hp. with 6 jaw reverse clutch
USA. 0C100000-0G760299
BEL. 9559771-0P016999

115 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

125 hp. with 6 jaw reverse clutch
USA. 0D283222-0G760299
BEL. 9793577-0P016999

125 hp.
USA. 0G760300 and up
BEL. 0P017000 and up
with 6 jaw reverse clutch
USA. 0A996142 and up
BEL. 9483121 and up

3 Cylinder

90 hp. with 6 jaw reverse clutch
USA. 0A996142-0G760299
BEL. 9483121-0P016999

90 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

 4 Cylinder

100 hp. with 6 jaw reverse clutch
USA. 0B209468-0G760299
BEL. 9523034-0P016999

100 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

115 hp. with 6 jaw reverse clutch
USA. 0C100000-0G760299
BEL. 9559771-0P016999

115 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

125 hp. with 6 jaw reverse clutch
USA. 0D283222-0G760299
BEL. 9793577-0P016999

125 hp.
USA. 0G760300 and up
BEL. 0P017000 and up

P/N 11156
OEM 44-75365
2, 3 & 4 Cylinder Small Gearcase
Length 12-1/2 inch
Carrier Needle Bearing 7/8 inch
Prop Splines 13
Prop Thrust Washer P/N 21290
$311.95

2 cylinder

35 hp.
USA. 6445653 and up
BEL. 9384476 and up
CDN. 7209608 and up

40 hp. (400)
USA. 2874704-3336257

40 hp. (402)
USA. 3336258-3344829

40 hp. (402)
USA. 3344830-4860102
AUS. 8002335-8052124
BEL. 3339688-9184450
CAN. 3340783-7112422

40 hp. (40, 402) Through 1983
USA. 4860103-5556269
AUS. 8052125-8064749
BEL. 9184451-9251455
CAN. 7112423-7144762

40 hp.Through 1983
USA. 5556270 and up
AUS. 8064750 and up
BEL. 9251456 and up
CAN. 7144763 and up

40 hp.
USA. 0C159200-0D279349
BEL. 9570790-9793444

40 hp.
USA. 0D279349 and up
BEL. 9793445 and up

45 hp.
USA. 5531630 and up
AUS. 8063985 and up
BEL. 9248006 and up
CAN. 7143688 and up

50 hp. (500)
USA. 2858814-3235062
AUS. 2863739-3244337
CAN. 2742142-3243512

50 hp. (500)
USA. 3235063-4962055
AUS. 3244338-8053229
BEL. 9001581-9195686
CAN. 3243513-7115573

50 hp.
USA. 4962056-5531629
AUS. 8053230-8063984
BEL. 9195687-9248005
CAN. 7115574-7143687

50 hp.
USA. 5531630 and Up
AUS. 8063985 and Up
BEL. 9248006 and Up
CAN. 7143688 and Up

50 hp.
USA. 6428681-0D000749
BEL. 9385911-9683054
CAN. 7208333 and Up

60 hp. 35 hp.
USA. 6445653 and up
BEL. 9384476 and up
CDN. 7209608 and up

40 hp. (400)
USA. 2874704-3336257

40 hp. (402)
USA. 3336258-3344829

40 hp. (402)
USA. 3344830-4860102
AUS. 8002335-8052124
BEL. 3339688-9184450
CAN. 3340783-7112422

40 hp. (40, 402) Through 1983
USA. 4860103-5556269
AUS. 8052125-8064749
BEL. 9184451-9251455
CAN. 7112423-7144762

40 hp. Through 1983
USA. 5556270 and Up
AUS. 8064750 and Up
BEL. 9251456 and Up
CAN. 7144763 and Up

4 cylinder

40 hp.
USA. 0C159200-0D279349
BEL. 9570790-9793444

40 hp.
USA. 0D279349 and Up
BEL. 9793445 and Up

45 hp.
USA. 5531630 and Up
AUS. 8063985 and Up
BEL. 9248006 and Up
CAN. 7143688 and Up

50 hp. (500)
USA. 2858814-3235062
AUS. 2863739-3244337
CAN. 2742142-3243512

50 hp. (500)
USA. 3235063-4962055
AUS. 3244338-8053229
BEL. 9001581-9195686
CAN. 3243513-7115573

50 hp.
USA. 4962056-5531629
AUS. 8053230-8063984
BEL. 9195687-9248005
CAN. 7115574-7143687

50 hp.
USA. 5531630 and up
AUS. 8063985 and up
BEL. 9248006 and up
CAN. 7143688 and up

 3 cylinder

50 hp.
USA. 6428681-0D000749
BEL. 9385911-9683054
CAN. 7208333 and up

60 hp. Standard
USA. 6428681-0D000749
BEL. 9385911-9683054
CAN. 7208333 and up

65 hp. (650)
USA. 3547987-4571651
AUS. 8006640 and up
BEL. 9020074-9135824
CAN. 7013633-7087822

70 hp.
USA. 4571652-4977156
AUS. 8042350-8050199
BEL. 9135825-9196960
CAN. 7087823-7110997

70 hp.
USA. 4977157-5579016
AUS. 8050200-8065064
BEL. 9196961-9255130
CAN. 7110998-7145937

70 hp.
USA. 5579017-6428680
AUS. 8065065 and up
BEL. 9255131-9385910
CAN. 7145938-7208332 Standard
USA. 6428681-0D000749
BEL. 9385911-9683054
CAN. 7208333 and up

65 hp. (650)
USA. 3547987-4571651
AUS. 8006640 and up
BEL. 9020074-9135824
CAN. 7013633-7087822

70 hp.
USA. 4571652-4977156
AUS. 8042350-8050199
BEL. 9135825-9196960
CAN. 7087823-7110997

70 hp.
USA. 4977157-5579016
AUS. 8050200-8065064
BEL. 9196961-9255130
CAN. 7110998-7145937

70 hp.
USA. 5579017-6428680
AUS. 8065065 and up
BEL. 9255131-9385910
CAN. 7145938-7208332
