Mercury outboard powerhead gasket kit

GLM Marine aftermarket sets for 30-300 hp. and V4-V6 engines

  • GLM aftermarket replacement Mercury outboard power-head kits also work with Mariner and Force
  • 4 to 250 hp. applications
  • See our head gasket page for all power-heads

Exploded view outboard drawings
Search by part number or description here

39140
39140

description

P/N 39140 #27-52893A72 $48.95

39150
39150
P/N 39150 #27-64203A75
(head gasket not included) $88.95

39180
39180
65 hp. (650) 3 Cylinder years 1973 to 1976 $48.95

USA. serial 3293184 to 4382056
AUS. serial 8006640 to 8042349
BEL. serial 9020074 to 9112988
CAN. serial 7013633 to 7073472

39190
39190

50 hp. (500)
4 Cylinder years 1965 to 1967

USA. 2116318 and up 39190
CAN. 2097445 and up
AUS. 2863739 and up
BEL. 9001581 and up

P/N 39190 / 27-72486A32 $71.95

39210
39210

P/N 39210 #27-73645A87 $47.89

75 hp.
4 Cylinder years 1984 to 1988
USA. serial no. range 6432901 and up
BEL. serial no. range 9393856 and up
CAN. serial no. range 7208573 and up

80 hp. (80, 800)
4 Cylinder years 1978 to 1979
USA. serial 4831999 to 643290080
AUS. serial 8050200 and up
BEL. serial 9177626 to 939385580
CAN. serial 7110998 to 7208572

$73.95

39240
39240

50 hp. 3 Cylinder years 1986 to 1987
USA. 6428681 to 0B122929
BEL. 9385911 to 9469199
CAN. 7208333 to 0A721307

P/N 39240 #27-88449A32 $77.95

39250
39250

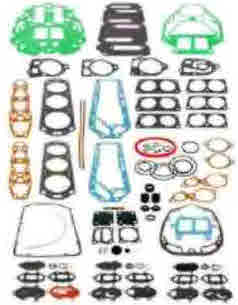

P/N 39250 Power-head gasket set / 27-89221A88 $144.95

39330
39330

35 hp. 2 cylinder years 1984 to 1986
USA. 6445653-OB110788
BEL. 9384476-9466646
CDN. 7209608 and up

40 hp. 2 cylinder 1972 to 1974

P/N 39330 #27-78028A78 $46.95

39331
39331
P/N 39331 includes head gasket #27-13461A99 $179.95

39332
39332
P/N 39332 includes head gasket OEM 27-14697A87 $122.95

39333
39333
P/N 39333 / 27-43004A99 $77.95

39334
39334
P/N 39334 Kit *includes head gasket* 27-37741A3 $65.89

39335
39335
P/N 39335 power-head gasket OEM 27-41499A87 $87.95

39336
39336
P/N 39336 Kit *includes head gasket* OEM 27-43779A87 $66.95

39337
39337
P/N 39337 #27-85491A90 $51.95

39340 power head gasket kit
39340 power head

P/N 39340 #27-79583A81

V 150 hp. 150-1500 years 1973 to 1977
USA. 4868998-6042945

V 175 hp. 175-1750 years 1976-1981
USA. 4301235-6618750

V 175 hp. 175-1750 years 1976-1979
AUS. 8058870 and up

$160.15

39520
39520

P/N 39520 gasket kit OEM 27-815791A92 $130.95

V-140 hp. Jet years 1996-1998
USA 0D082000-0G960499

V-135 hp. 1991
USA 0C239553-0G960499

V-150 hp. years 1988-1991
USA 0C239553-0G960499

V-150 hp. (XR4)year 1991
USA 0C239553-0D081999

V-150 hp.(XR6 / Magnum IU)years 1992-1995
USA 00082000-06960499

V-150 hp. EFI years 1993-1998
USA 00082000-0G960499

V-175 hp. year 1991
USA 0C239553-0D081999

V-175 hp. years 1992-1995
USA 00082000-0G960499

V-175 hp. EFI years 1992-1995
USA 0D000750-00081999

V-175 hp. EFI years 1992-1995
USA 00082000-0G960499

V-200 hp. year 1991
USA 0C291 520-0D081 999

V-200 hp.
USA OD082000 and up

V-200 hp. years 1996-1998
USA 0G960500 and up

V-200 hp. EFI year 1991
USA 0C291 520-0G960499

39550
39550
P/N 39550 #27-85653A87 $83.95

39550

140 hp. 140, 1400 6 Cylinder
year 1972
USA 3293234-3502805

140 hp. years 1978-1979
USA 4865678 and Up
AUS 802650 and up


150 hp. (1500) 6 Cylinder
years 1973-1978
USA 3502806-5327662
AUS 8005615-8052649

150 hp. (1500) 6 Cylinder
years 1973-1977
CAN 7010533-7112772

39341
39341

P/N 39341

39342
39342

P/N 39342

39343
39343

P/N 39343

39440 Mercury outboard parts
39440 Mercury outboard parts
P/N 39440 / 27-90484A88 $157.95

39450
39450

P/N 39450 / 27-11338A88 $144.95

39560
39560

39560

V-200 hp. (200, 2000)
years 1978-1979
USA 4839034-6073191

V-200 hp. (200, 2000)
years 1980-1981
AUS 8061595-8065672

V-200 hp. year 1982
USA 6073192-6203990

V-225 hp. years 1980-1981
USA 5628028 and up

$110.95

39900
39900

P/N 39900 #27-4236A92 $38.95

39338
39338

39159
39159


Force

Force 3 cylinder
Force 3 cylinder

P/N 37000 / 27-809753A1 $87.95

37010
37010
P/N 37010 #27-809754A1 $121.95
