Mercury outboard parts drawings L4, L6 and V6 P/N 50-68

Lower unit parts drawings for 65 to 225 hp.

Parts 50 to 68

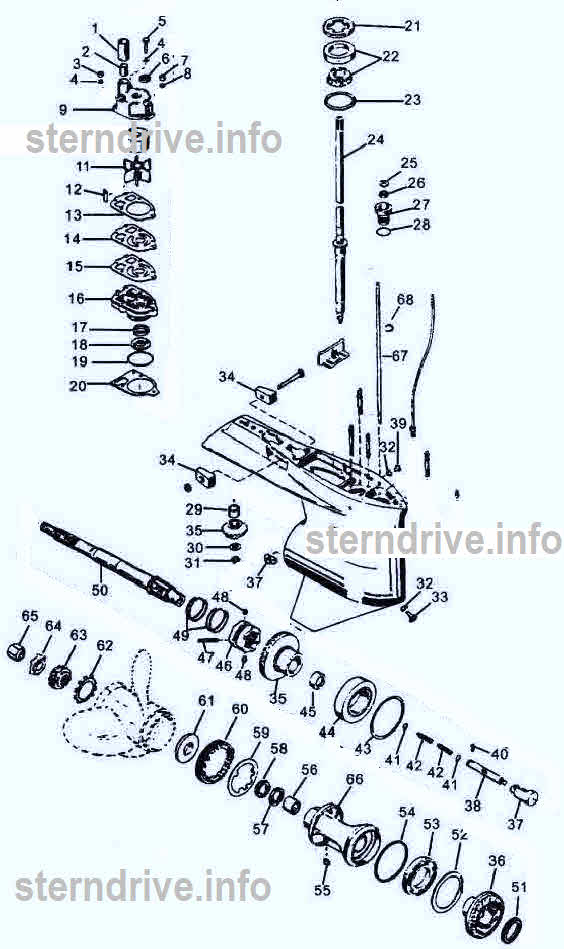

Exploded view Mercury lower unit parts drawings
Search by part number or description here

Mercury Mariner lower unit 65-225 hp

Mercury Mariner lower unit 65-225 hp

11151
11151
Item 50

P/N 11151
Propeller Shaft OEM 44-94148 $508.95

11152
11152
Item 50

P/N 11152 Propeller Shaft OEM 44-93003 $385.95


Item 51

P/N 11012 Thrust Spacer OEM 23-824108 $4.95


Item 52

P/N 23140 Thrust Ring OEM 68100-1 $11.95

21620
21620
Item 53

P/N 21620 Bearing OEM 30-88957T $37.95

83445
83445
Item 54

P/N 83445 O ring (5 units) OEM 25-896524 $14.95


Item 55

P/N 11080 Key OEM 28-30281 $4.95

11410
11410
Item 56

P/N 11410 Bearing OEM 31-30956 $9.95

85130
85130
Item 57

P/N 85130 Oil Seal OEM 26-76868 $8.89

85700
85700
Item 58

P/N 85700 Oil Seal OEM 26-12224 $12.95


Item 59

P/N 11380 Keyed Washer OEM 14-79447 $6.95

21120
21120
Item 60

P/N 21120 Cover Nut OEM 79448 $18.95

21301
21301
Item 61

P/N 21301 Thrust Hub OEM 12-835467-1 $21.95


Item 62

P/N 21760 Lockwasher OEM 13-42351-1 $4.95

21360
21360
Item 63

P/N 21360 Receiver OEM 12-31211A3 $6.95

21200
21200
Item 64

P/N 21200 Tab Washer, 2 Units. OEM 14-816629Q $4.95

21230
21230
Item 65

P/N 21230 Lock Nut OEM 11-827614 $8.95


Item 66

P/N 11396 Bearing Carrier OEM 43567T1. *New item - call for availability $159.95

Item 67

P/N 21150 Shift Shaft, Long. OEM 76062A1 $47.95

21136
21136
Item 68

P/N 21136 Retaining Ring OEM 53-29641 $4.95
