Mercury outboard carburetor kit

GLM aftermarket carburetor diaphragm and gasket kits

40401 40 hp. 2 cylinder kit

40401 40 hp. 2 cylinder kit

P/N 40401 #1395-4808-1 $4.95

2 cylinder

40 hp.
(KD-5A
50 hp.
(WMK-1-8-21-24-31-33-34-38)

3 cylinder

65 HP. (650) 3 cylinder
(WMK-5, 12, 13, 20)

4 cylinder

50 hp.
WMK-8

40410 Carb kit OEM 1395-6200

40410 Carb kit

P/N 40410
OEM 1395-6200 $4.95

3 cylinder
Sierra Part Number: 18-7004
Mercury Part Number: 1395-6200

50 hp.
(WM-13. 13A. 15.15A. 16.16A, 18)
(WM-13, 13A, 15,15A, 16,16A, 18)

55 hp.
(WM-13, 13A, 15,15A, 16,16A, 18)

40420
40420

P/N 40420
#1395-6452 $5.95

V 150 hp. year 1991
USA 0C239553-00081 999 MH7

V-150 hp.(XR4, MAO III) years 1992-1985
USA 0D082000-0G303045(WMH-14A, 25,32A)


V-175 year 1991
USA 0C239553-0D081 999 (WMH-2,11)

V-175 hp. years 1992-1995
USA 0D082000-00303045 (WMH-1 5,22,33)


V-225 hp. 3.O liter Sea Pro, Marathon years 1994-1998
USA 00245605-00303045 (WMH-45)

V-225 hp. 3.0 liter years 1994-1998
USA 0028081 3-0G303045(WMH-1 9, 46, 47

V-200 hp. year 1991
USA 0C291 520-0D081 999 (WMH-3

V-200 hp. years 1992-1995
USA 0D082000-0G303045 (WMH-1 6.21,34,39)

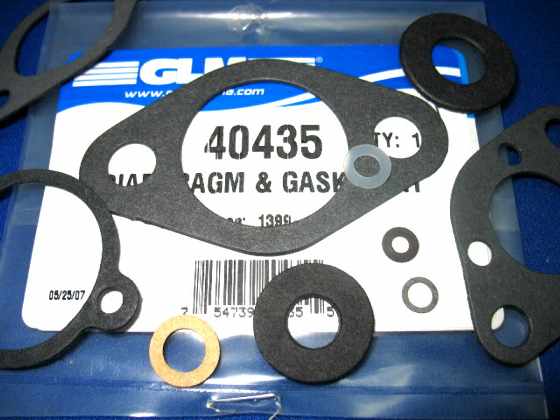

40435 Mercury outboard
40435 Mercury outboard

P/N 40435 Carb kit #1399-1717 or #1399-2015 $6.95

2 Cylinder

35 hp.
KC-4A, 8A, 9A, 9B, 9C, 13A

4 Cylinder

35 hp. (350)
(KB-2A)

4O hp. (400)
KB9

45 hp. (450)
KA-17A

50 hp.
KA-13A, 18A, 19BA, 21A, 21B, 21C, 21A, 24A, 26A, 26B, 27A

65 hp. (650)
KC-2A, 5A, 5B, 50, 11A, 15A

6 cylinder

60 hp. (600) (6 cylinder)
(KB-3A)

40440
40440

P/N 40440 #1395-9651 $4.95

4 cylinder

40 hp. (WMA-7B)
40 hp. (WMA-9, 10, 13)
45 hp. (WMA-7B)
45 hp. (WMA-9, 10, 13)

40450 9.9-15-25 hp. carburetor kit

40450 9.9-15-25 hp. carburetor kit

P/N 40450 Force carb. kit #FK10352 $10.95


40460 50 hp. 4 cylinder
40460 50 hp.

P/N 40460 #1399-5135 or 1399-5198 $7.95

50 hp. 4 cylinder BA-3A.3B.3C. 3D. 4ki

40470
40470

P/N 40470 $18.95


40480
40480

P/N 40480 $16.95


40490  40 hp. 2 cylinder 644cc
40490 40 hp. 644cc

P/N 40490 #1395-811223-1 $5.95

2 cylinder

40 hp. (644cc)
(WME-36, 36A, 37,37A, 38, 39A, 42, 42A, 63, 64, 65, 66, 67

3 cylinder

40 hp.
(WME-53, 68, 69)

45 Jet hp.
(WME-57, 78)

50 hp.
(WME-22, 22B, 23, 24, 26, 27, 28

55 hp.
(WME-22, 22B, 23, 24, 26, 27, 28, 35, 43,44, 45, 57, 58)

60 hp.
(WME-22, 22B, 23, 24, 26, 27, 28, 35,43,44, 45, 57, 58)

40610
40610

P/N 40610 Diaphragm gasket kit #1395-9761-1 $34.95

6 hp. WMC-5, 5A, 5B, 7, 7A, 17,17B, 17C, 18, 18A. 188. 19, 19A. 20, 20A, 20B

6 hp. WMC-23, 28,34, 39,41 40610 41A. 47,47A, 49,49A, 57

6 hp. years 1986-1998
USA 0A197112 & Up

6 hp. years 1986-1998
BEL 9461526 & Up

8 hp. (WMC-5, 5A, 5B, 7, 7A, 17,17B7 17C,18,41A, 47, 47A, 49, 49A, 57

8 hp. (WMC-23, 28, 34,39,41

8 hp. years 1986-1998
USA 0A197112 & Up

8 hp. years 1986-1998
BEL 9461526 & Up 18, 18A, 18B, 19, 19A, 20, 20A, 20B

9.9 hp. WMC-5, 5A, 5B, 7, 7A, 17, 17B, 17C, 23, 28, 34, 49, 41, 41A, 47, 47A, 49, 49A, 57

9.9 hp. years 1986-1998
USA 97112 & Up
BEL 9461526 & Up

10 hp. Sea Pro, Marathon
WMC-33, 33A, 40, 42, 50, 50A, 50b

10 hp. XR10, Magnum 10
WMC-23, 48, 48A, 49,49A

15 hp. WMC-5, 5A,5B, 7,7A, 17, 178, 17C,18,18A, 18B, 19,19A, 20,20A, 20B, 23, 28,34,39,41, 41A, 47, 47A, 49, 49A, 57

15 hp. years 1988-1998
USA 0B292414& Up
BEL 9542620 & Up

15 hp. WMC-13, 13A, 14, 14A, 15A, 16A, 24,

15 hp. Super 15, 15XD, 25, 26, 27, 29, 30, 31, 31A, 32, 32A, 35, 35A, 35B, 36, 37, 44, 45, 46, 46A, 52, 52A, 53, 53A, 54, 54A, 56, 56A

15 hp. Sea Pro, Marathon
WMC-33, 33A, 40, 42, 50, 50A, 50B, 55, 55A

18 hp. WMC-1, 2, 3, 4, 9, 10, 11, 12, 13, 13A, 14, 14A, 15A, 16A, 24, 18, 25, 26, 27, 29, 30, 31, 31A, 32, 32A, 35, 35A, 35B, 36, 37,44,45,46, 46A, 52, 52A, 53, 53A, 54, 54A, 56, 56A

20 hp. (WMC-1, 2, 3, 4, 9, 10, 11, 12, 13, 13A, ,14, 14A, 15A, 16A, 20, 25, 26, 27, 29, 30, 31, 31A, 32, 32A, 20, 35, 35A, 35B, 36, 37, 44, 45, 46, 46A,52, 52A, 53, 53A, 54, 54A, 56, 56A

20 hp. years 1986 and 1987
USA. 6443973 and up
BEL. 9415101 and up
CAN. 7209533 and up

20 Jet 1994-98
USA 0G044027 and up
WMC-45, 53A

25 hp. 2 cylinder
WMC-1, 2, 3, 4, 9, 10, 11, 12, 13, 13A, 14,14A, 15A, 16A, 24, 25, 26, 27, 29, 30, 31, 31A, 32, 32A, 35, 35A, 35B, 36, 37, 44, 45, 46, 46A, 52, 52A, 53, 53A, 54, 54A, 56, 56A

25 hp. years 1984-1987
USA 6443973 & Up
BEL 9415101 & Up
CAN 7209533 & Up

40620
40620

P/N 40620 #810749-2 $6.95

40620

V 150 hp. year 1991
USA 0C239553-00081 999 (/MH76

V-150 hp. (XR4, MAO III) years 1992-1985
USA 0D082000-0G303045(WMH-14A, 25,32A)

V-175 hp. year 1991
USA 0C239553-0D081 999 (WMH-2,11)

V-175 hp. years 1992-1995
USA 0D082000-00303045 (WMH-1 5,22,33)

V-225 hp. 3.O liter Sea Pro, Marathon years 1994-1998
USA 00245605-00303045 (WMH-45)

V-225 hp. 3.0 liter years 1994-1998
USA 0028081 3-0G303045(WMH-1 9, 46, 47)

V-200 hp. year 1991
USA 0C291 520-0D081 999 (WMH-3)

V-200 hp. years 1992-1995
USA 0D082000-0G303045 (WMH-1 6.21,34,39)

40630
40630

P/N 40630 - $14.95 OEM 810749-3


40630
V-150 (XR4, MAG UI) years 1996-1998
USA 00303046-00760299 (WMV-3, 3A)

V-150 (XR4, MAO III)years 1996-1998
USA 0G762000 & Up WMV-3A

V-175 hp. years 1996-1998
USA 0G303046-0G760299 WMV-4

V-175 hp. year 1991
USA 00760300 & Up WMV-4A

V-200 hp. years 1996-1998
USA 0G303046-0G760299 WMV-5, 5A

V-200 hp. years 1996-1998
USA 00760300 & Up WMV-5A

V-225 hp. 3.O liter years 1994-1998
USA 0G303046-0G760299 WMV-7

V-225 hp. 3.O liter years 1994-1998
USA 0076300 & Up

V-225 hp. 3.O liter Sea Pro, Marathon years 1994-1998 USA 00303046-00760299 WMH-6, 11A

V-225 hp. 3.O liter Sea Pro, Marathon years 1994-1998 USA ALL (WMV-11)

V-225 hp. 3.0 liter Sea Pro, Marathon years 1994-1998 USA 00760300 & Up (WMV-11 A)

40640 40 hp. 4 cylinder
40640 40 hp.

P/N 40640 #1395-9024 $7.95

4 cylinder

40 hp. (WMA-4)
45 hp. (WMA-4)
50 hp. (WMA-1, 3)

40660
40660

P/N 40660 OEM 1399-5137 $5.95




30 Jet G590000 and up 40290 35(350) 1960827-2874703 40180
