Mercury water pump 3 Cylinder 45 to 60 hp. P/N 12095

GLM products aftermarket 3 cylinder water pump for
45 Jet, 50, 55 and 60 hp.

  • Mercury / Mariner water pump with impeller
  • OEM: 46-812966A11
  • Fits 1991 and up
  • 45 Jet, 50, 55 and 60 hp.
  • 3 Cylinder

Exploded view drawings Click here
Search by part number or description here

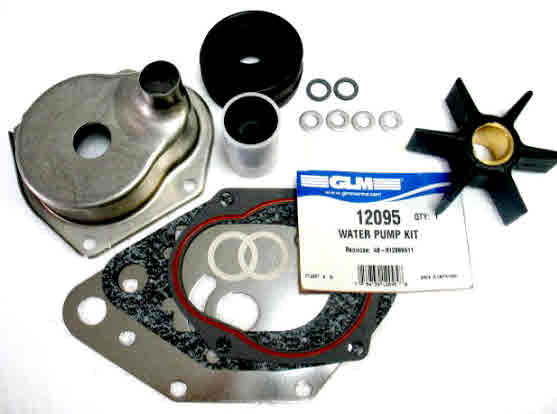

12095 Mariner Mercury water pump kit

12095 Mariner / Mercury water pump kit

P/N 12095 Water pump with impeller $114.89 OEM 46-812966A11

Parts included listed here

P/N 85180* TUBE SEAL OEM: 43023 Included in 12417
P/N 31590 INSULATOR OEM: 23-43045 Kit Contains: 4
P/N 12417 PUMP HOUSING OEM: 14334A3 *Includes 85180, 37490, 12506 and 37470
P/N 21490** WASHER (4) OEM: 12-29245 Included in 12506
P/N 31177** WASHER (2) OEM: 12-858234 Included in 12506
P/N 89616 IMPELLER OEM: 47-19453T
P/N 37490* GASKET OEM: 27-822189 Included in 12417
P/N 12506* WEAR PLATE OEM: 19700A2 Included in 12417 ** Includes 21490, 31177
P/N 37470* GASKET OEM: 27-8M4502052 Included in 12417
P/N 37478 GASKET OEM: 27-19454-1
P/N 31170 GASKET OEM: 12-19183-3 Kit Contains: 3
P/N 12352 PUMP BASE OEM: 46-812966A7 + Includes 82250, 86870 and 86860
P/N 82250* 0-RING OEM: 25-30224 Included in 12352
P/N 86870* OIL SEAL OEM: 26-814670 Included in 12352
P/N 86860 OIL SEAL OEM: 26-814669 Included in 12352

12095


45 hp.
Jet
US OD000750 and up

50 hp. 3 cylinder
US OD000750 - OG589999
BEL 9683055 - 9973099

55 hp. 3 cylinder
US OD000750 and up
BEL 9741042 and up

60 hp. 3 cylinder Standard
US OD000750 and up
