King Cobra used OMC lower unit gear set and parts
  • Bearing carrier, lower unit, gear sets and shafts
  • Please note: the true King Cobra lower unit should only be used for the 7.4L (454) and 7.5L (460) motors
  • For the 5.7L (350) and 5.8L (351) motors, use the standard Cobra lower unit gearcase parts

LM king cobra gear case.jpg
king cobra gear case
LM OMC lower unit.jpg
OMC lower unit

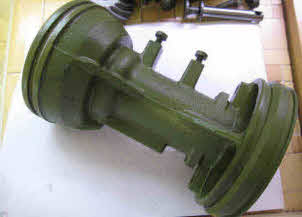

#22-444 OMC King Cobra used 454 / 460 empty gear housing

$750.79

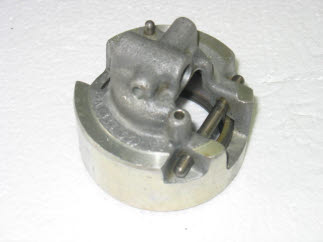

OMC bearing housing only.jpg
OMC bearing housing

Roller bearing not included with housing
Used bearing housing (roller bearing not included) $150.79

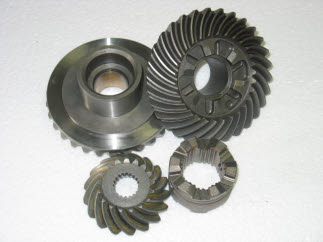

LM OMC king cobra gears.jpg
OMC king cobra gears
Compatible with 7.5L and 460 models

OEM # 986941

New forward, reverse, pinion gear and clutch

(NEW) SOLD OUT
$949.89

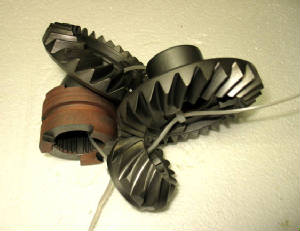

used omc king cobra 460 gear set
used omc king cobra 460 gear set.jpg
OEM # 986941

Used complete 460 gear set
Used complete 460 gear set

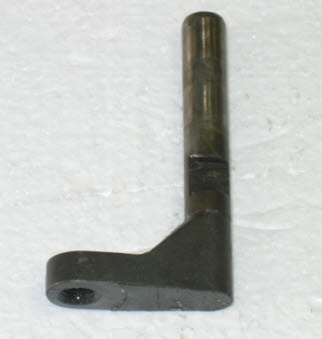

LM dentent.jpg
Dentent
Used detent $40.79

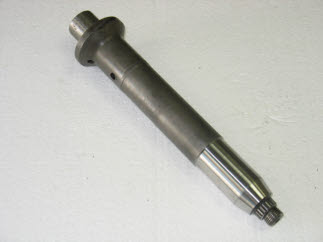

LM King cobra drive shaft.jpg
King cobra drive shaft
Used drive shaft $160.09

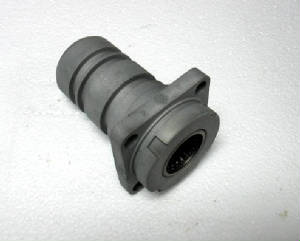

Used omc king cobra bearing housing
used omc king cobra bearing housing.jpg
Used top bearing housing $39.09

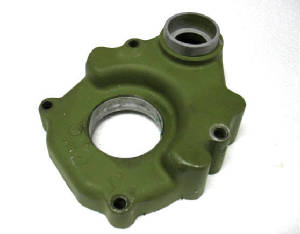

used omc king cobra water passage housing.jpg
Used water passage housing $34.09

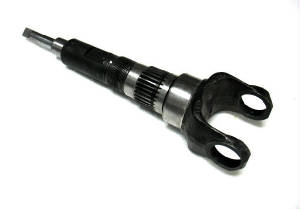

used omc king cobra water pump shaft yoke.jpg
Used water pump shaft $120.09

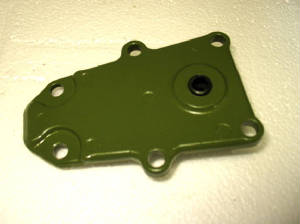

used omc king cobra cover and seal assembly.jpg
used and seal assembly $16.09
