OMC exhaust manifold Cobra 5.0-5.7 Liter

GLM aftermarket parts for GM 350 CID V8 engines
years 1990 and up

Exploded view OMC parts drawings click here
Search by OEM service number or description here

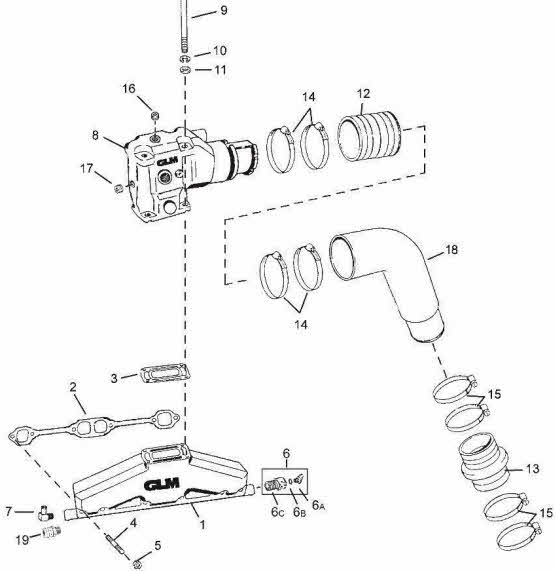

GM 305-350 5.0-5.7 liter years 1989 and up

GM 305-350 5.0-5.7 liter years 1989 and up

51430 Exhaust Manifold
51430 Exhaust Manifold

1
P/N 51430
Manifold assembly OEM 3857723 $234.29



2
P/N 31100
Gasket OEM 3852468 sold in (units of 2) $11.09

33810 Gasket

33810 Gasket

3
P/N 33810
gasket OEM 3850496 sold in (units of 2) $11.09

22487 Stud
22487 Stud

4
P/N 22487
Stud (2 units) OEM 3852467 $10.09

21248 lock nuts
21248 lock nuts

5
P/N 21248
Flange serrated nuts OEM 3853404 lock nut sold in (units of 5) $4.09

13982 Straight Fitting
13982 Straight Fitting

6
P/N 13982
Straight fitting kit $6.09

13993 Plug

13993 Plug

6C
P/N 80140
Drain plug

80140 o ring
80140 o ring

6B
P/N 80140
OEM 304174 O Ring 5 units) $4.89

13970 Fitting
13970 Fitting

7
P/N 13970
Elbow fitting OEM 3852538 $28.09

51330 elbow
51330 elbow

8
P/N 51330
Exhaust Elbow / Riser Assembly with gasket, washers and bolts OEM 3857944 $174.09

22316 Screw
22316 Screw

9
P/N 22316
Screw OEM 3852830 $4.89

21493 Lockwasher

21493 Lockwasher

10
P/N 21493
Lock-washer OEM 3852002 (10 units) $5.89

21675 Washer
21675 Washer

11
P/N 21675
Washer (5 units) OEM 3852058 $4.89

89224
89224

12
P/N 89224
OEM 3852696 Hose $26.09

89222 OMC hose
89222 OMC hose

13
P/N 89222
Hose OEM 3852741 $22.09

01068
01068

14
P/N 01068
Clamp OEM 3853860

01090 Clamp
01090 Clamp

15
P/N 01090
hose clamp OEM 3852604 $4.89



16
P/N 22379
Plug $4.89

21896 Plug
21896 Plug

17
P/N 21896
Plug OEM 315713 $4.89
