GLM Marine aftermarket Mercruiser Alpha 1 thrust hub.
  • OEM number 12-825467
  • GLM Marine part number:21301
  • Thrust Hub identified as part number 66 on Alpha 1 lower gearcase drawing page

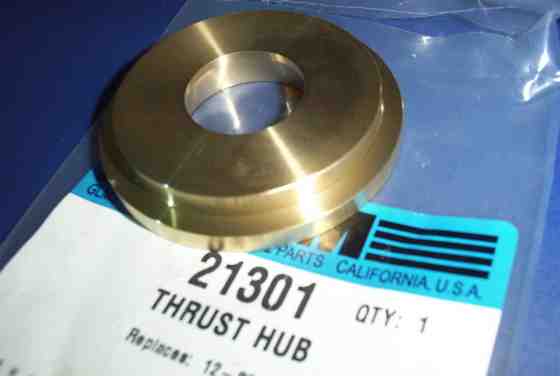

W 21301 Mercruiser Alpha 1 thrust hub.jpg
21301 Mercruiser Alpha 1 thrust hub

# 21301 Alpha 1 Thrust Hub $19.98
