GLM Aftermarket tab washers are compatible with all OEM Mercruiser Alpha One parts
  • Alpha One tab washer # 64 with illustrated photo # 11381
  • Cost effective aftermarket Mercruiser outdrive lower seal kits and shims
  • Aftermarket Tools for Mercruiser stern drive repairs
  • If help is required, contact our service tech for advice troubleshooting your Mercruiser stern drive unit at
  • (416) 751-7326
Tab washer aftermarket mercruiser parts

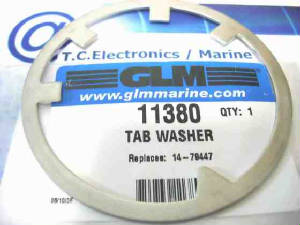

W 11380 Mercruiser outdrive tab washer.jpg
#11380 Mercruiser outdrive tab washer

# 11381 Tab washer OEM # 14-18323  $11.89
