Oil pump for the Mercruiser Alpha 1 lower unit
  • Part number: 401-11245-1
  • Oil pump for the Mercruiser Alpha 1 lower unit
  • 4cc pump and 3/8" - 16 swivel metal marine fitting
  • Hose is flexible for hard to reach plugs
  • Includes adaptor that also fits OMC, Volvo and Evinrude/Johnson stern drives
  • For more tools, see our repair tools page

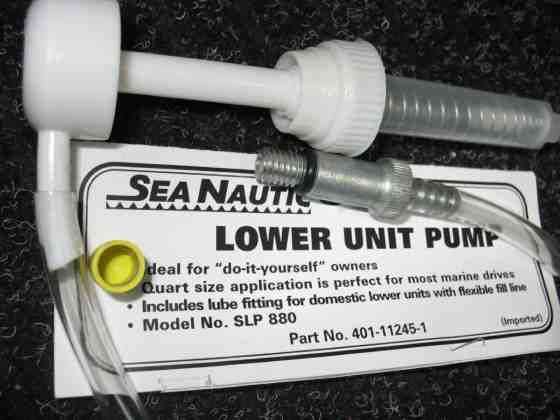

W Alpha 1 lower unit oil pump.jpg
Alpha 1 lower unit oil pump

  #401-11245-1 Lower unit oil pump $9.89
