GLM Marine aftermarket Alpha 1 lock washer transom plate and shift cable exploded parts drawing

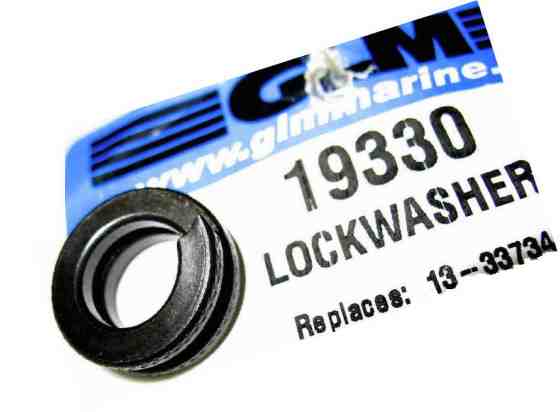

  • GLM #19330 Mercruiser outdrive Alpha 1 lock washer Installed with the transom bolt
  • OEM number: 13-33734
  • Lock washer for Alpha 1 drive years 1984 thru 1990
W 19330 Alpha 1 lock washer.jpg
19330 Alpha 1 lock washer

# 19330 Lock washer (5 units) $9.29
