GLM Marine aftermarket Mercruiser Alpha 1 oil seal
  • OEM number :  26-892-38
  • GLM Marine part number : 85070
  • Also included in the complete water pump kit
  • Oil seal identified as part number 19 on Alpha 1 lower gearcase drawing page

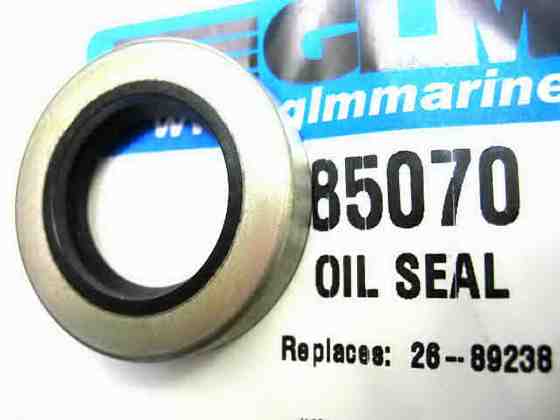

W 85070 Mercruiser Alpha 1 oil seal.jpg
85070 Mercruiser Alpha 1 oil seal

  # 85070 Alpha 1 Oil seal $9.79
