GLM Marine aftermarket oil seal for the MerCruiser Alpha 1 lower gearcase water pump assembly
  • GLM aftermarket oil seal
  • OEM number: 26-16977
  • GLM Marine part number: 85040
  • See our lower gearcase drawing page for more lower unit parts
  • Oil seal is also included in the complete water pump kit
W 85040 Mercruiser Alpha 1 oil seal.jpg

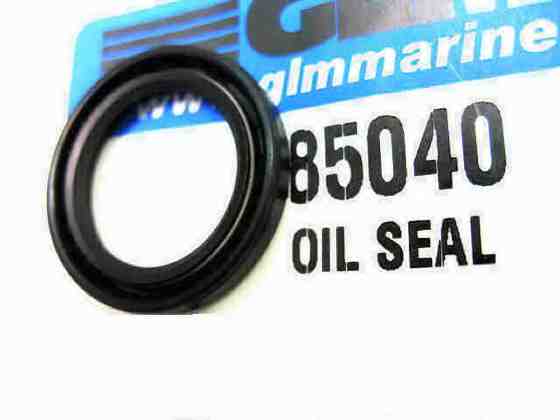

85040 Mercruiser Alpha 1 oil seal

   85040 Oil Seal $8.79
